electric city bus battery pack
NF EHP3.0-3

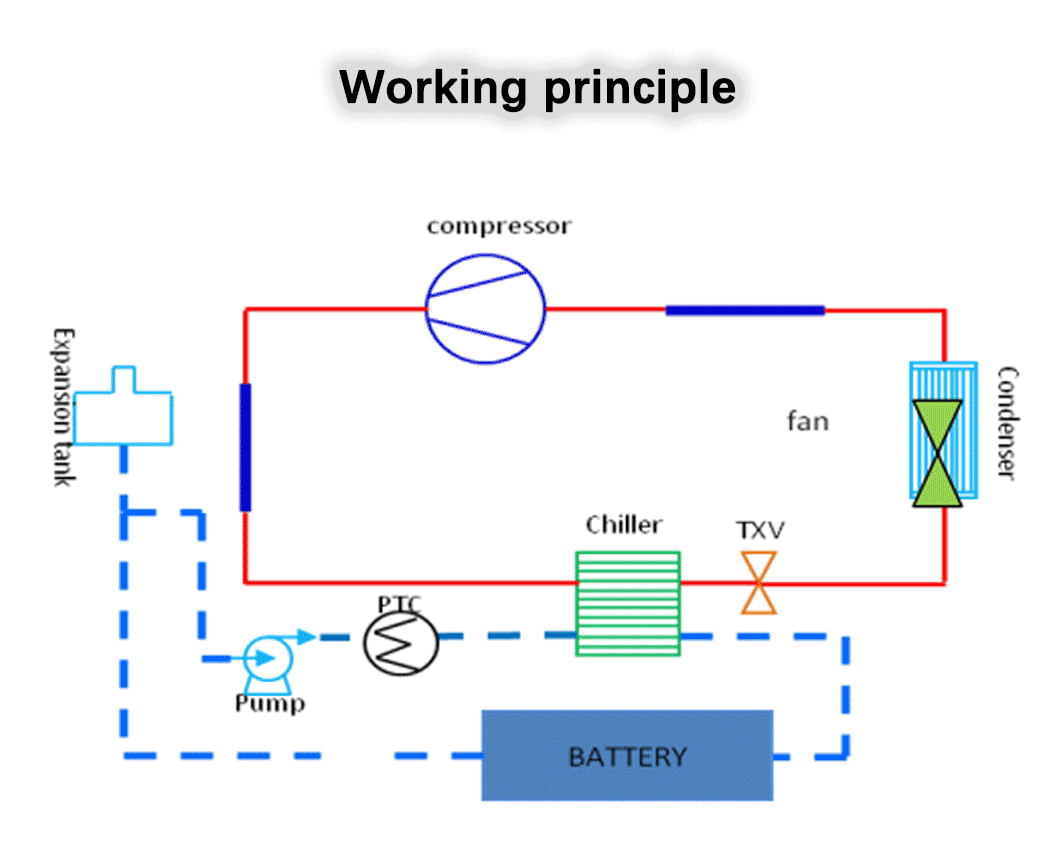

Electric vehicle battery system thermal management is not a single product, but an integrated and intelligent temperature control system. Its core is to keep the power battery always working in the optimal range of 20-40℃, ensuring range, lifespan, fast charging and safety.
Quantity:
| Model | NFEHP3.0-3 |
Working environment | -20~55℃ |
Refrigerant | R1234yf/R134A |
Cooling liquid | 50% 50% ethylene glycol/water solution |
High voltage | 540VDC (450-720VDC) |
Low voltage | 24VDC (18-32VDC) |
Rated refrigeration capacity | 4.5KW |
Rated heating capacity | 5KW |
Overvoltage protection/overvoltage recovery | 750/720V DC |
Under-voltage protection/Under-voltage recovery | 400/430V DC |
Box color | Black |
Weigh | ＜35kg |
Waterproof protection level | IP67 |

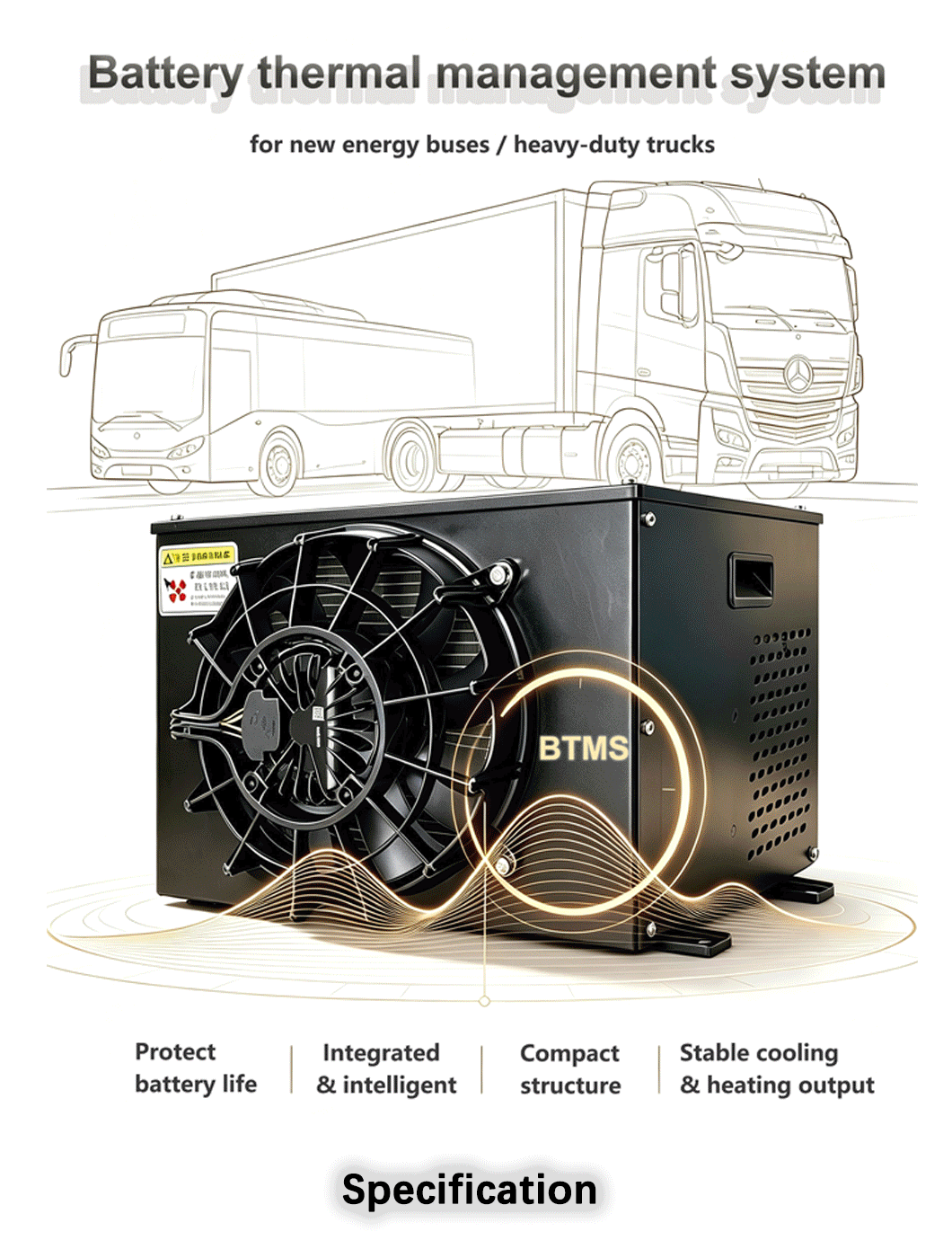

A Battery Thermal Management System (BTMS) is a comprehensive technology system for monitoring, regulating, and controlling the temperature of a power battery pack. Its core mission is to ensure that the battery always operates within its safe and efficient optimal temperature range under any external environment, and to maintain uniform temperature across all battery cells.
Simply put, BTMS is like a"smart temperature manager"for electric vehicle batteries-it prevents the battery from overheating or freezing, keeping it in optimal operating condition at all times.
