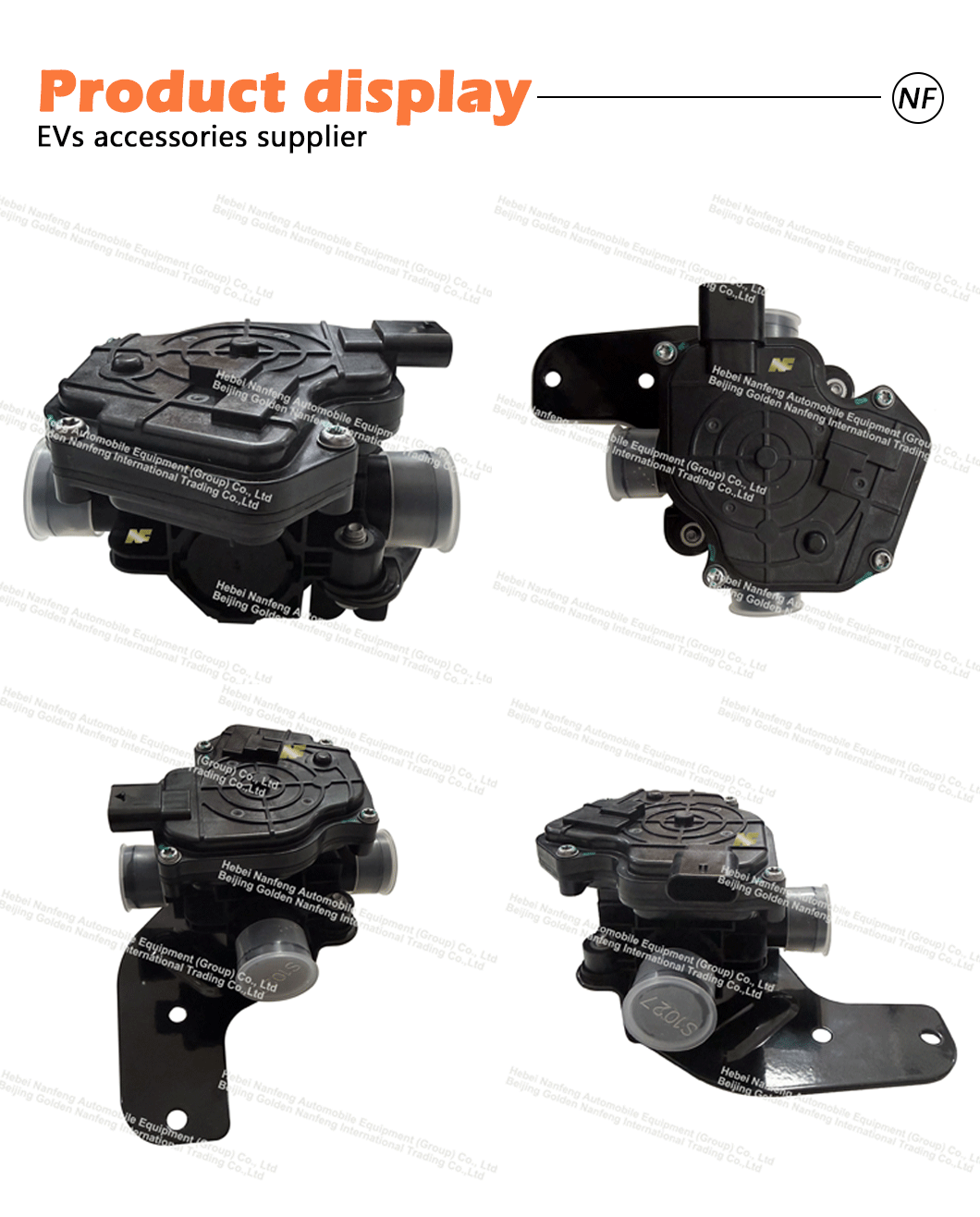

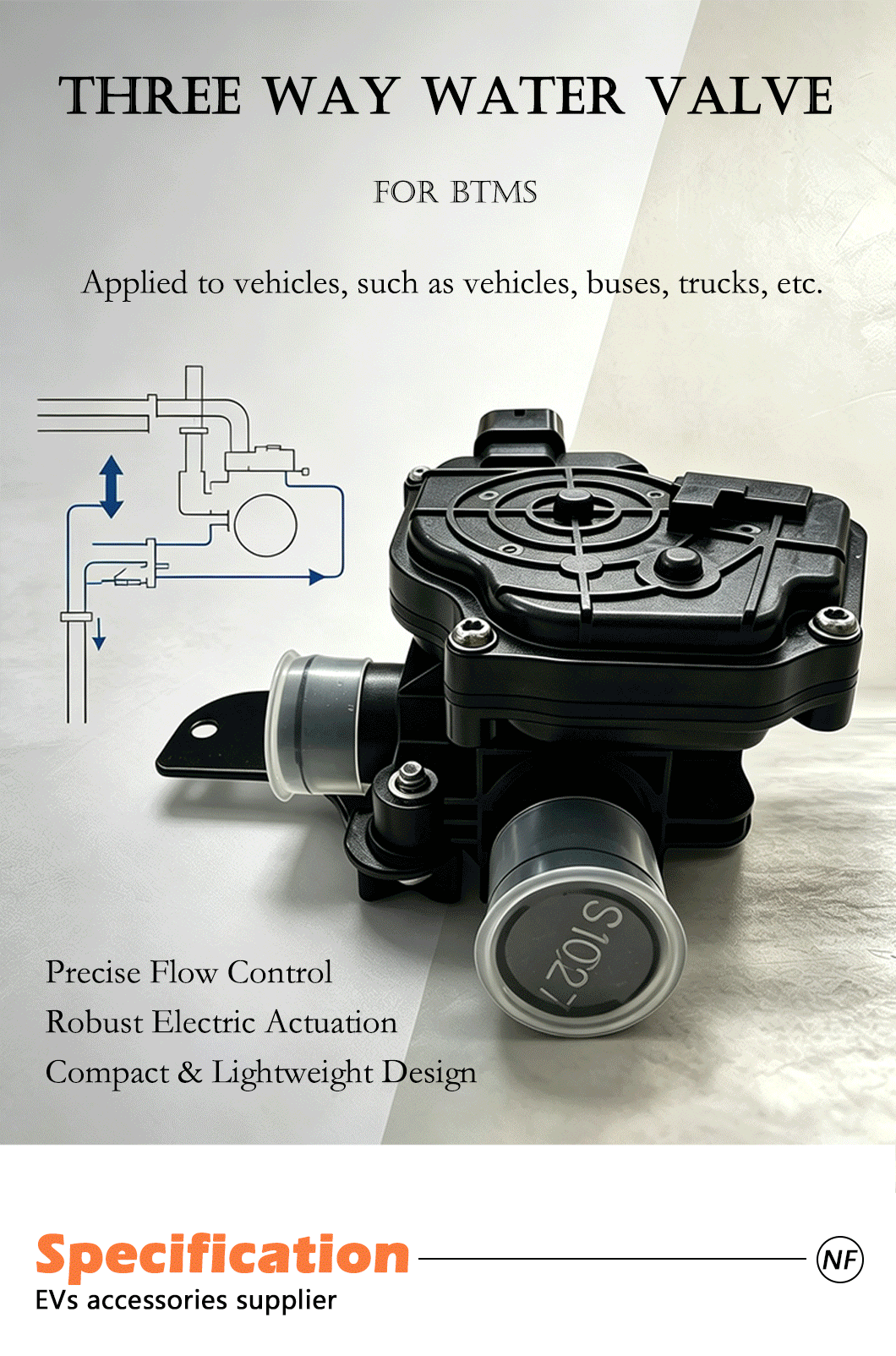

This electronic coolant valve (electronic water valve) is a core component of the battery thermal management system for new energy vehicles. It integrates a drive motor, position sensor, and mounting bracket to precisely control the on/off state of the coolant circuit and switch the direction of water flow. It realizes the distribution of cooling/heating flow between the battery pack, motor, electronic control, and air conditioning (HVAC) circuits, and is compatible with the thermal management systems of pure electric and hybrid vehicles.

Parameter Name

Value
Product Name

Three-way valve
Communication Method

LIN/PWM
Working Voltage

12V/24V
Voltage Range

9 V~16V/20V-30V
Internal leakage

≤20mL/min@30kPa
External Leakage

≤5mL/min@340kPa
Switching Time

<10s
Life

300000 times

The valve series offers the following core advantages:

1. Excellent sealing performance with minimal leakage rate
2. High regulation accuracy with linear control characteristics
3. Fast response speed with precise execution
4. Long service life suitable for high-frequency switching applications
5. Pressure and corrosion resistance adaptable to complex media environments
6. Low power consumption with energy-saving features
7. High waterproof rating suitable for demanding automotive operating conditions
