vehicle battery heater
NF SR10-4

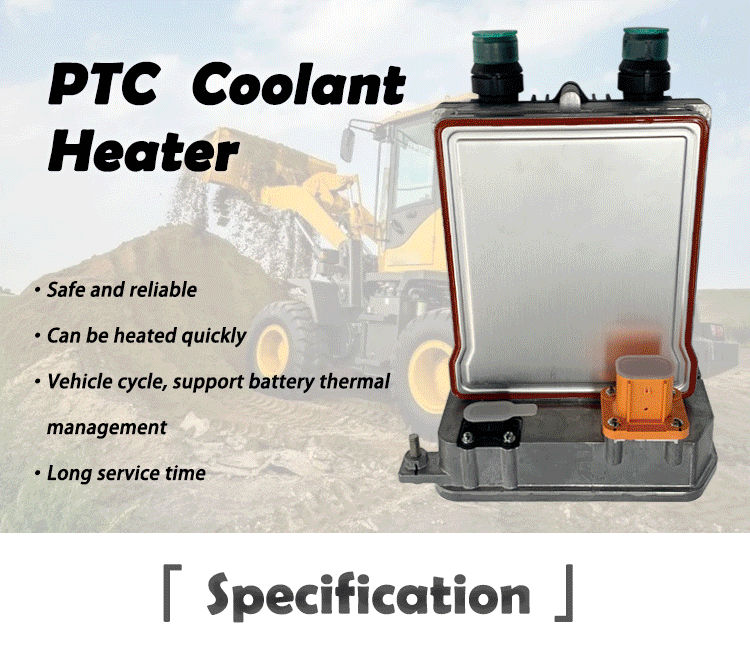

PTC heater is a heating device designed using the constant temperature heating characteristics of PTC thermistor
Quantity:
Model | NFSR10-4 |
Electric power | 10KW ±10% (650VDC, 20 L/min, 20 ℃) |
High voltage range | 550V~850V |
Low voltage range | 20 ~32V |
Electric shock | ≤35A |
Heating method | PTC positive temperature coefficient thermistor |
Communication method | PWM control |
Electrical strength | 2150VDC , no discharge breakdown phenomenon |
Insulation resistance | 1 000VDC, ≥ 100MΩ |
Storage temperature | -40~125℃ |
Use temperature | -40~125℃ |
Coolant temperature | -40~90℃ |
Protection level | IP 6K9K & IP67 |
Coolant | 50%( water)+50%(ethylene glycol) |
Weight | ≤ 3.1kg |
By 2030, electric vehicles (EVs) will constitute 64% of global new car sales. As the greener and more cost-efficient alternative to fossil-fueled cars, EVs will soon be a fixture of everyday life. Therefore, our main new products in recent years are electric vehicle parts, especially High Voltage coolant heater. Please check our catalog in attachment. From 2.6kw to 30kw, our heaters can meet all your requirements.
Our high-voltage coolant heaters can be used for improving battery energy performance in EVs and HEVs.
In addition it allows comfortable cabin temperatures to be generated in a short time enabling a better driving and passenger experience.
In addition it allows comfortable cabin temperatures to be generated in a short time enabling a better driving and passenger experience.
