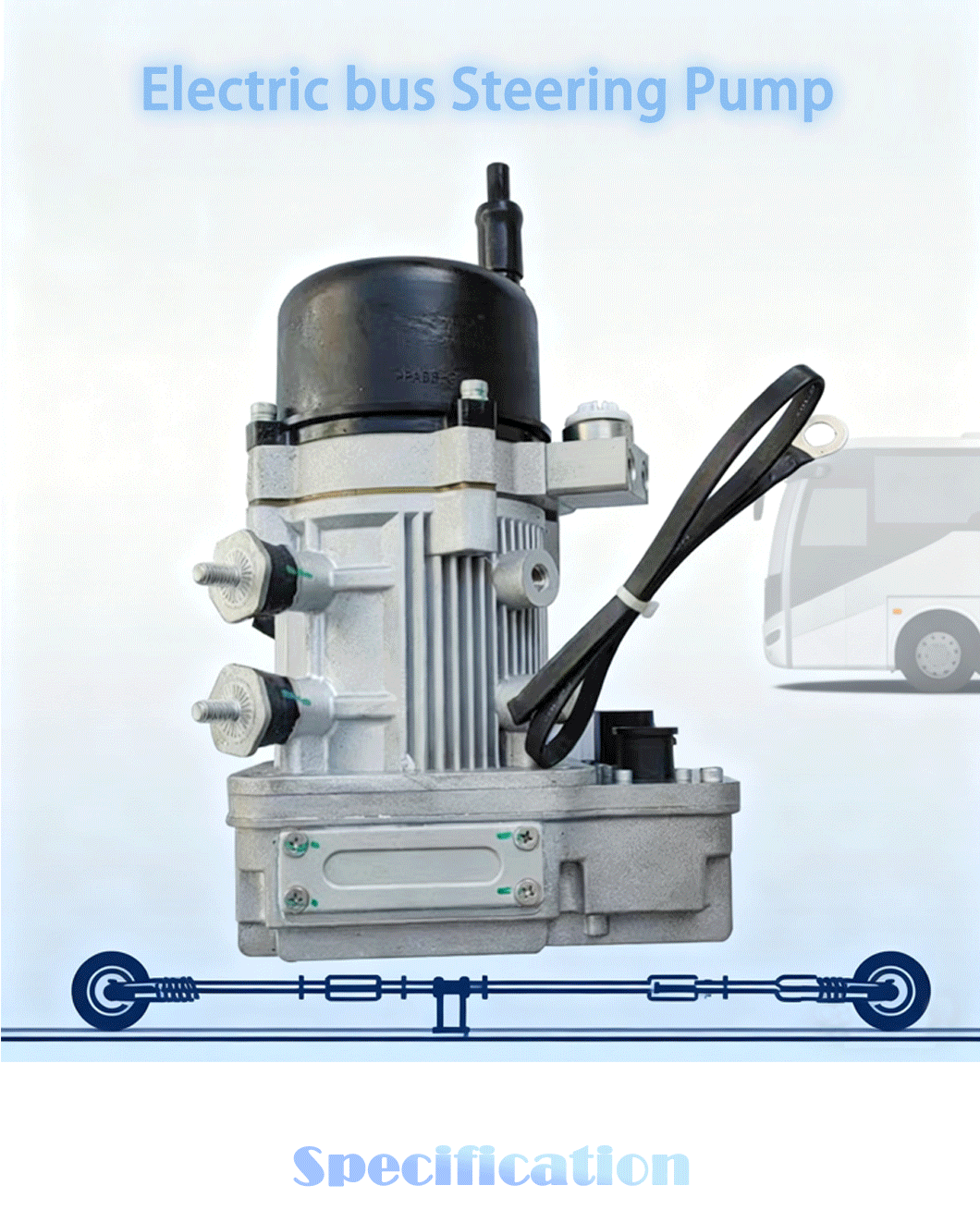

Electric Bus Steering Pump
NFEHPS 30AZLHK03
Electric vehicle steering systems represent a fundamental technological departure from traditional gasoline-powered vehicles.
Primarily categorized into three distinct types, these systems include Electric Power Steering (EPS), Electro-Hydraulic Power Steering (EHPS), and Steer-by-Wire (SBW), each offering unique advantages tailored to the performance and safety requirements of modern electric mobility.
Primarily categorized into three distinct types, these systems include Electric Power Steering (EPS), Electro-Hydraulic Power Steering (EHPS), and Steer-by-Wire (SBW), each offering unique advantages tailored to the performance and safety requirements of modern electric mobility.
Quantity:

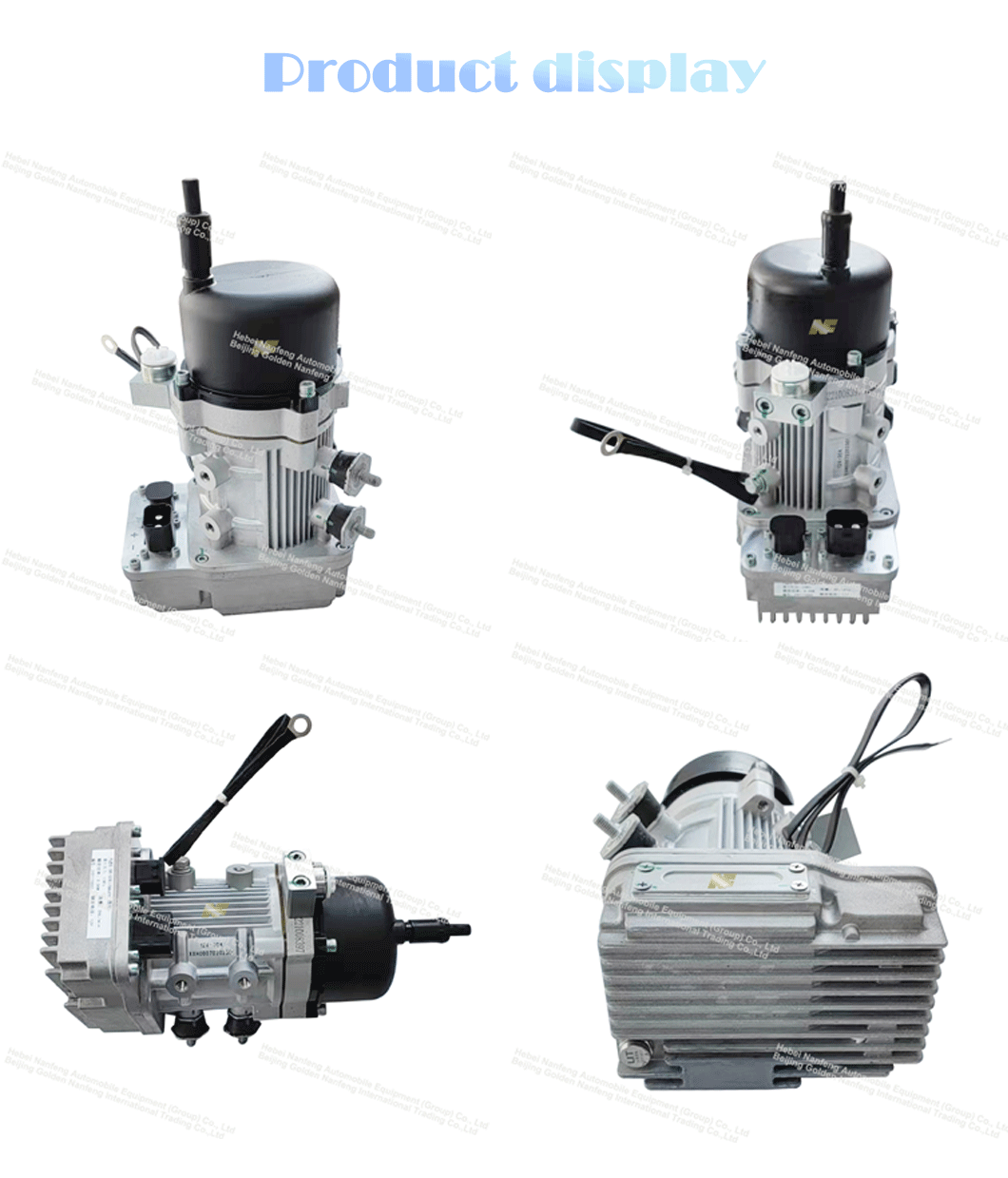

TheElectric Bus Steering Pump Assembly (hereinafter referred to as the"Electric Pump") serves as the steering power source for pure electric and hybrid electric buses, providing reliable steering assistance to the vehicle and acting as a critical component of the steering system. The Electric Pump consists of a vane pump, an AC induction motor, and various connecting components. The vehicle's main power source utilizes a controller to invert DC power into the AC induction power required by the motor; once the circuit is activated, the motor begins to operate, subsequently driving the hydraulic pump to supply fluid to the steering gear cylinder, thereby satisfying the requirements of the power steering system. This product boasts numerous advantages—including an overall protection rating of IP67, extremely compact dimensions and light weight, and excellent noise performance—along with stable and reliable operational capabilities, making our Electric Pump highly popular among numerous domestic and international automotive manufacturers and customers.
Rated power (W) | 750 |
Peak power (W) | 1500 |
Rated voltage ( VDC) | 12 |
Controller voltage range(VDC) | 9-16 |
Rated speed (r/min) | 3000 |
Duty | S1min |
No-load busbar current(A) | 6 |
Instantaneous peak busbar current(A) | 100 |
Protection class | IP67 |
Cooling method | Free cooling (ventilation) |
Working temperature | -40ºC~+85ºC |
Control method | Ignition start strategy control, constant speed 3500rpm |
Electric Bus Steering PumpDescription

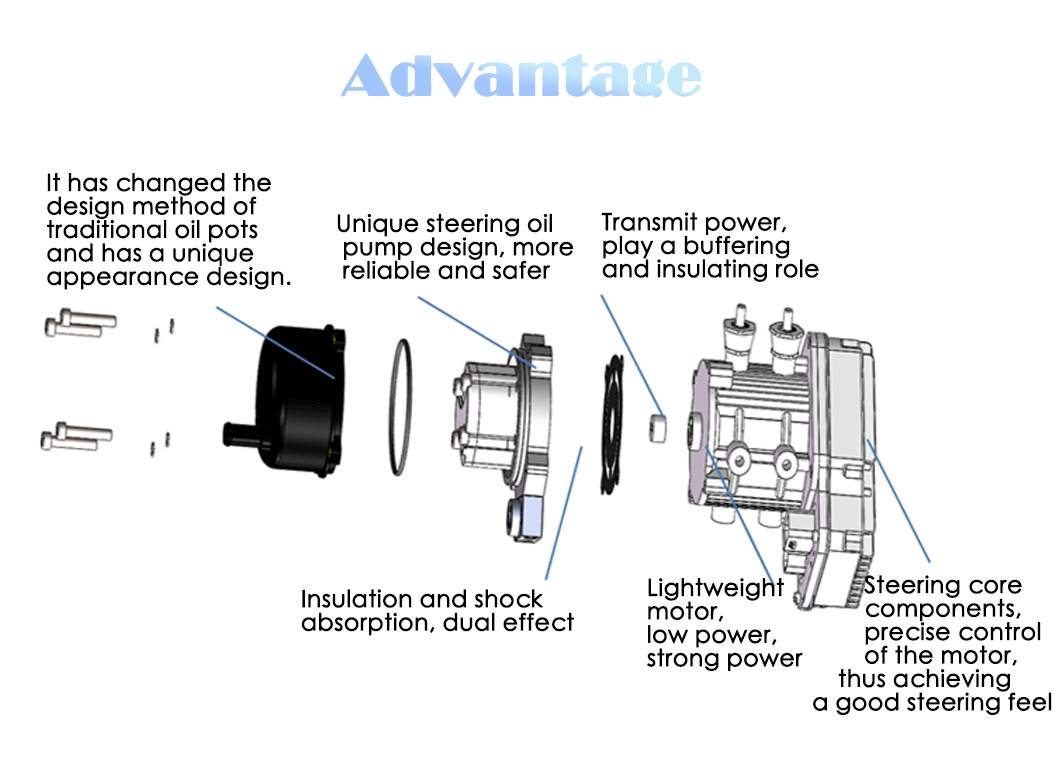

The 12V intelligent integrated electro hydraulic power steering system features an innovative integrated structural design, combining the traditional external oil reservoir and pump body. This optimizes space utilization while improving system sealing and reliability. Equipped with a high-performance steering pump and dual-function composite components, the system efficiently transmits power while also providing damping, vibration control, and electrical insulation, significantly enhancing operational smoothness and safety.
The 12V intelligent integrated electro hydraulic power steering system features an innovative integrated structural design, combining the traditional external oil reservoir and pump body. This optimizes space utilization while improving system sealing and reliability. Equipped with a high-performance steering pump and dual-function composite components, the system efficiently transmits power while also providing damping, vibration control, and electrical insulation, significantly enhancing operational smoothness and safety.
The Electrical power steering pump system utilizes a lightweight, high-power-density motor, achieving powerful output with lower energy consumption. Combined with a precisely controlled steering core motor, the Power steering pump responds to steering commands in real time, providing the driver with a smooth and refined steering feel, achieving a balance between precise handling and comfort.
