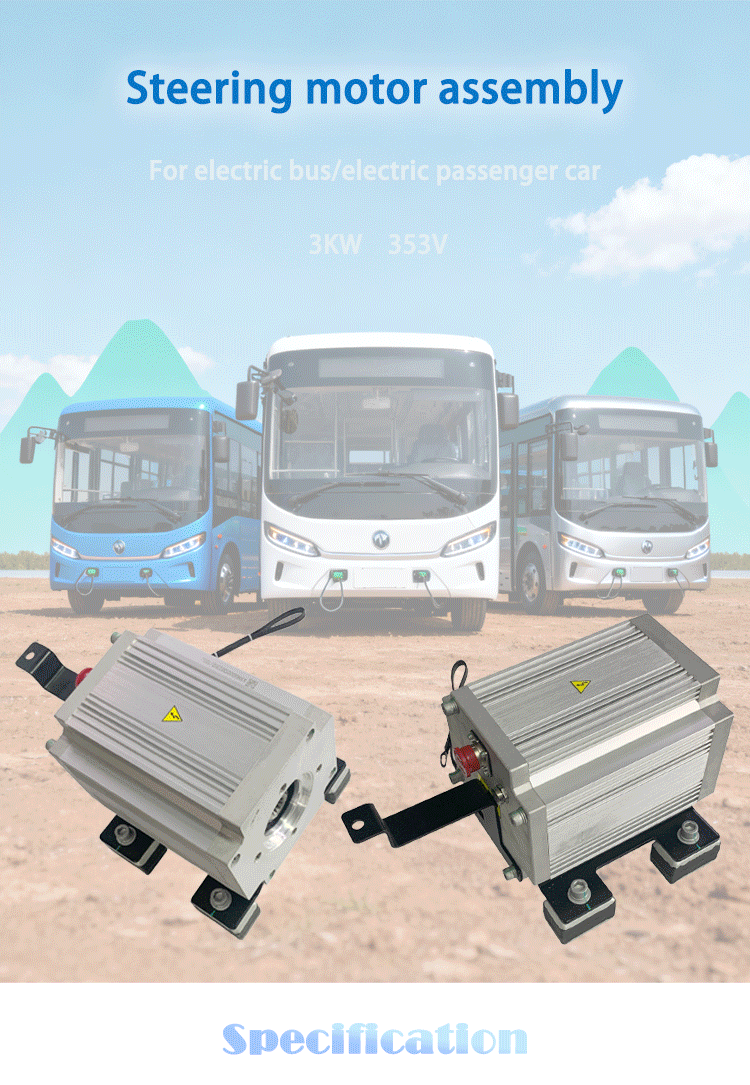

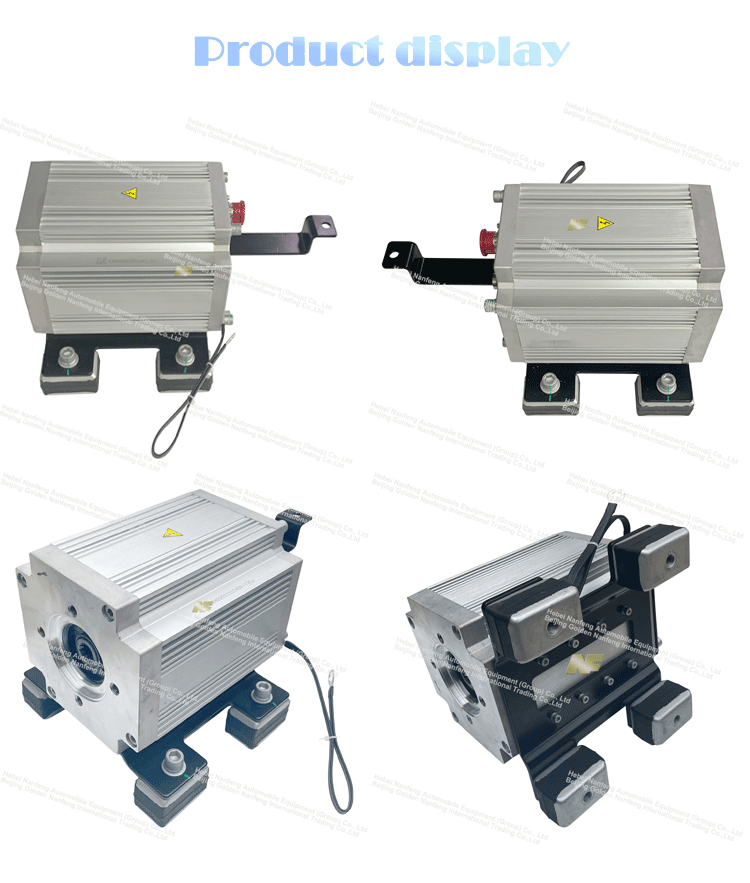

EHPS Steering Pump System
NF 3KW
Beijing Golden Nanfeng has a history of producing electric vehicle parts for over 30 years. Our company is the largest auto parts manufacturer in China. The steering motor is specifically designed for electric vehicles and electric trucks, supporting OEM customization.
Quantity:
Rated power (W) | 3 |
Peak power (W) | 7.5 |
Rated voltage ( VDC) | 353 |
Controller voltage range(VDC) | 400~700V(rated 500V) |
Rated current (A) | 8 |
Peak current(A) | 20 |
No-load busbar current(A) | 6 |
Rated torque (N.m) | 19.1 |
Peak torque (N.m) | 48 |
Cooling method | Natural cooling |
Rated efficiency (%) | ≥92% |
Working temperature | -40ºC~+85ºC |
Motor type | SVC position sensorless permanent magnet synchronous motor |
EHPS, short for Electro-hydraulic Power Steering, is a technology that falls between traditional hydraulic power steering and pure electric power steering.
Traditional HPS: Its hydraulic pump is directly driven by the engine via a belt. As long as the engine is running, the pump operates continuously, consuming energy. This is one reason why the steering wheel is heaviest, and fuel consumption increases when traditional gasoline-powered cars are idling.
EHPS: It replaces the engine with a dedicated electric motor. This electric motor is specifically designed to drive the hydraulic pump, thereby generating hydraulic power steering.
