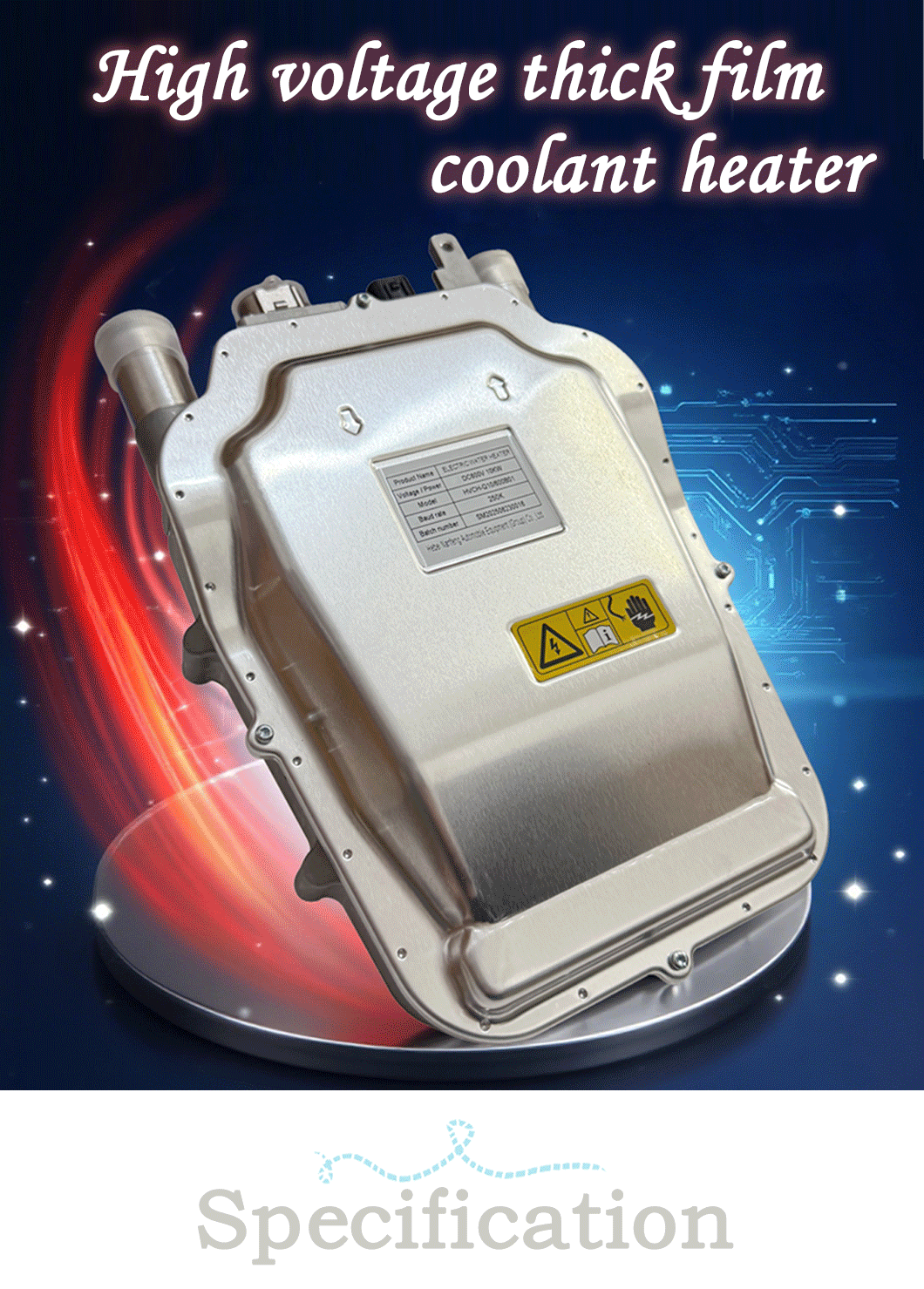

High Voltage Thick Battery Heater
NF HVCH-Q01
7-15 kW thick film electric heater, which has been supplied in batches. This product has the advantages of ultra-high thermal efficiency, strong pressure resistance, ultra-long life, ultra-safety, and simple structure.
Quantity:
If you're looking for the high voltage thick battery heater, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.
| Project | Content |
| Rated Power | 15 kW ± 10% (Water temperature: 20°C ± 2°C; Flow rate: 20 ± 1 L/min) |
| Power Control Method | CAN / Hardwired |
| weight | ≤2.3kg |
| Coolant Capacity | 430ml |
| Water and Dust Resistance Rating | IP67/6K9K |

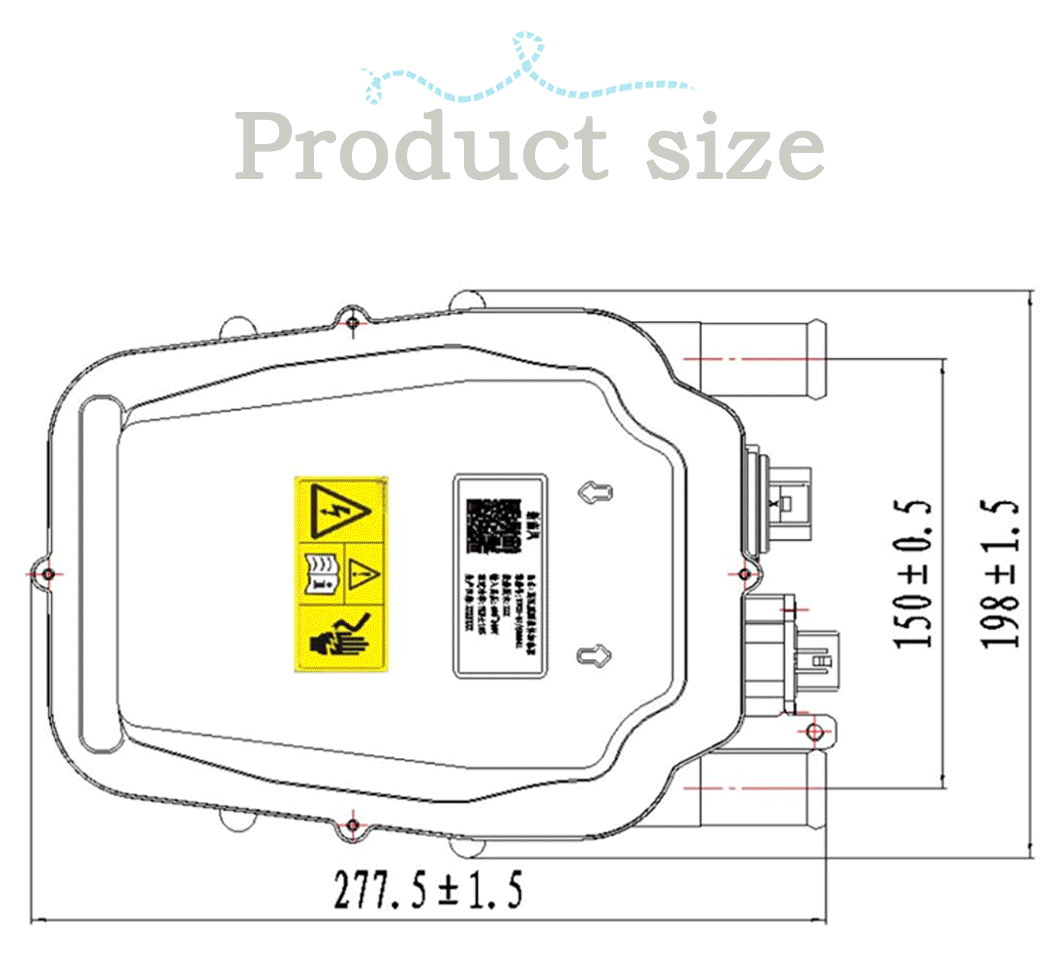

| size | 277.5*198*55 |
| Insulation Resistance | Under normal conditions, withstands a 1000 VDC/60s test, with an insulation resistance of ≥ 500 MΩ. |
| Electrical Properties | Under normal conditions, it withstands (2U+1000) VAC, 50–60 Hz, for a duration of 60 seconds, without flashover or breakdown. |
| Sealing Performance | Water Tank Side Airtightness: Air, @RT, Gauge Pressure 250 ± 5 kPa, Test Duration 10 s, Leakage Rate ≤ 3 cc/min. |
High-Voltage Side:
| Rated Voltage | 600VDC |
| Voltage Range | 400-800VDC(±5.0) |
| High-Voltage Rated Current | 25A |
| Surge Flow | ≤35 A |
Low-voltage side:
| Rated Voltage | 24VDC/12VDC |
| Voltage Range | 9-32VDC(±0.2) |
| Operating Current | ≤500mA |
| Low-voltage starting current | ≤900mA |
Temperature Range:
| Operating Temperature | -40-85℃ |
| Storage Temperature | -40-125℃ |
| Coolant Temperature | -40–90°C |
| Burst Pressure | 0.5Mpa |
The high-voltage thick-film heater for new energy vehicles represents a new generation of highly efficient, high-voltage-compatible core components for liquid heating. Distinguished by its ultra-high thermal efficiency, rapid response time, high-pressure resistance, and long service life, it is gradually displacing traditional PTC heaters to become the mainstream choice for thermal management systems on 800V high-voltage platforms.
