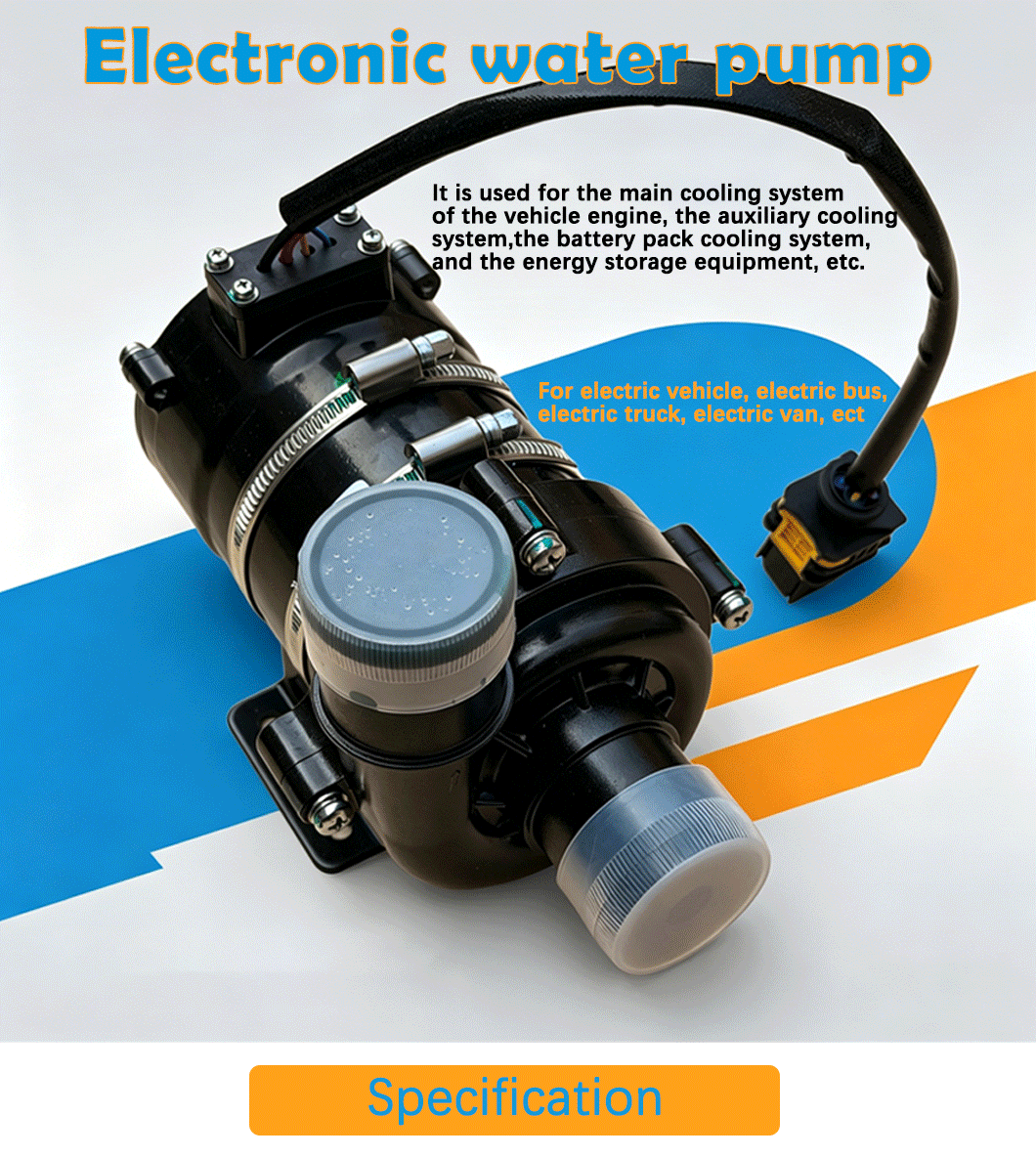

EV electronic water pump
NF 612.1118
If you're looking for the new energy electronic water pump, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.
Quantity:
For new energy vehicles, the power battery is not only the"power source"but also the core factor determining travel safety and lifespan. The"health code"of the battery lies in the temperature control during every drive and every charge-excessively high or low temperatures accelerate battery degradation, shorten driving range, and even create safety hazards. At the heart of the battery cooling system, a high-efficiency, intelligent new energy electronic water pump silently safeguards the battery's stable operation, becoming an"invisible guardian"of new energy vehicle battery cooling.Electronic water pumps can adjust the flow of circulating coolantaccording to the vehicle working conditions, and realize precisetemperature control of automobile motors/electronic controls/airconditioners/batteries and other components. They are animportant part of new energy vehicles and liquid-cooled energystorage systems.
| Rated voltage | DC 24V |
| Operating voltage range | 16V~32V |
| Rated power | 350W |

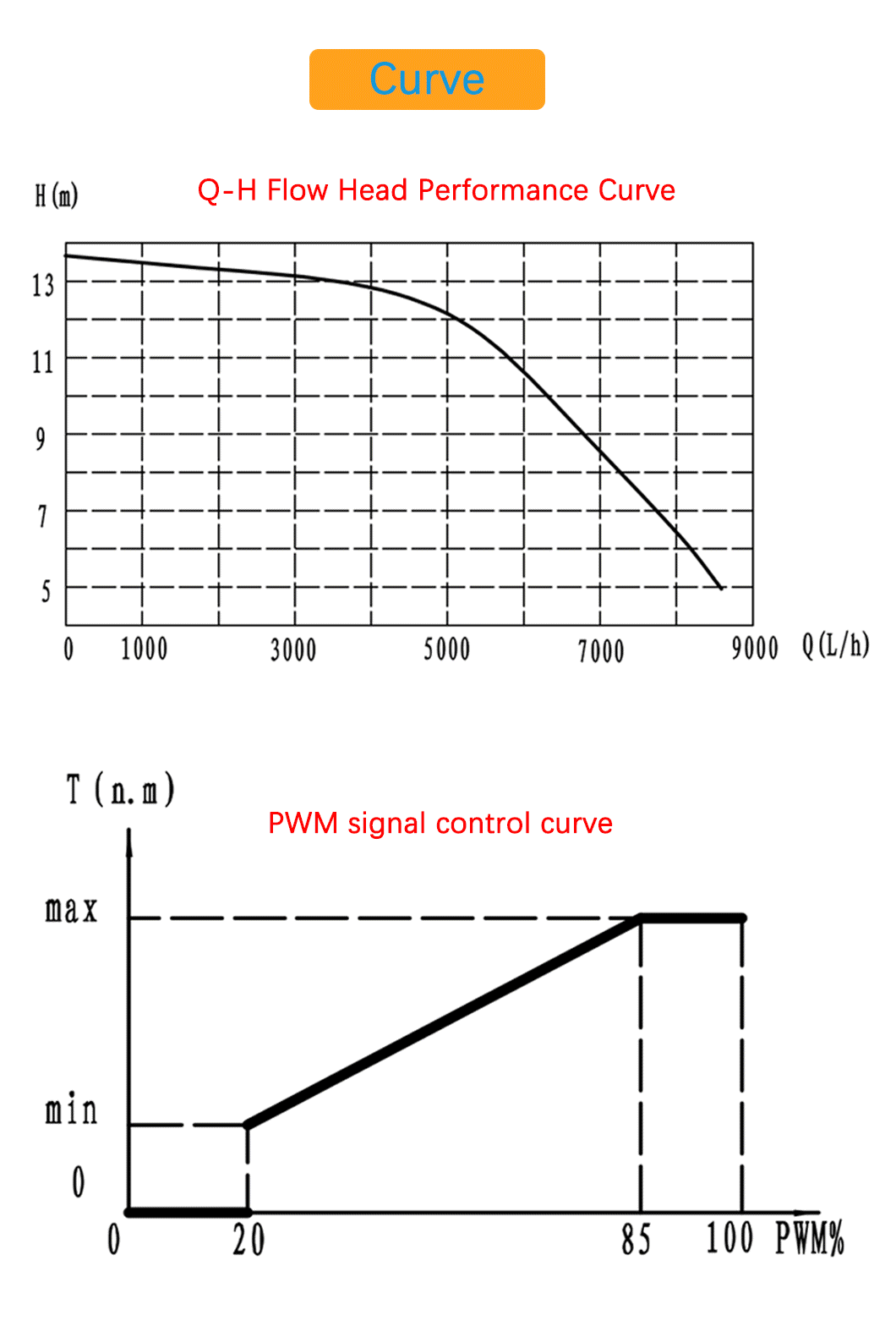

| Rated operating condition | At a head of 12m, maximum flow rate ≥5000L/h, current ≤15.5A |
| Maximum head | ≥13m |
| Storage temperature | -50°C~125℃ |
| Operating ambient temperature | -40°C~100°C |
| Permissible medium | Antifreeze |
| Pump life | ≥20000 hours |
| Protection class | IP68 |
| Mating connector model | AMP1-1418390-1 |
| Noise | ≤60dB measured at a distance of 1 meter |
| Function description | Reverse polarity protection, dry-running protection, locked-rotor protection, overvoltage protection |
New energy electronic water pump Features
- Low energy consumption and high efficiency
- Longer service life, continuous working time of more than 20,000hours
- Flexible control mode (PWM, CAN) provides timely and appropriate cooling capacity
- Multiple working protections (over-temperature, over-voltage, over-current, etc.)
This EV electronic water pump is designed with battery cooling as its core scenario, deeply adapting to the battery cooling needs of various new energy vehicle models. It covers multiple voltage specifications, including 12V and 24V, and can flexibly adapt to different sizes and types of power battery packs, whether square, cylindrical, or pouch batteries, achieving precise temperature control and efficient cooling. It's not only the"power core"of the battery cooling system but also the"lifespan guardian"of the power battery. With its intelligent temperature control, high efficiency, energy saving, and stable reliability, it solves core pain points in new energy vehicle batteries such as overheating, battery degradation, and safety hazards.
