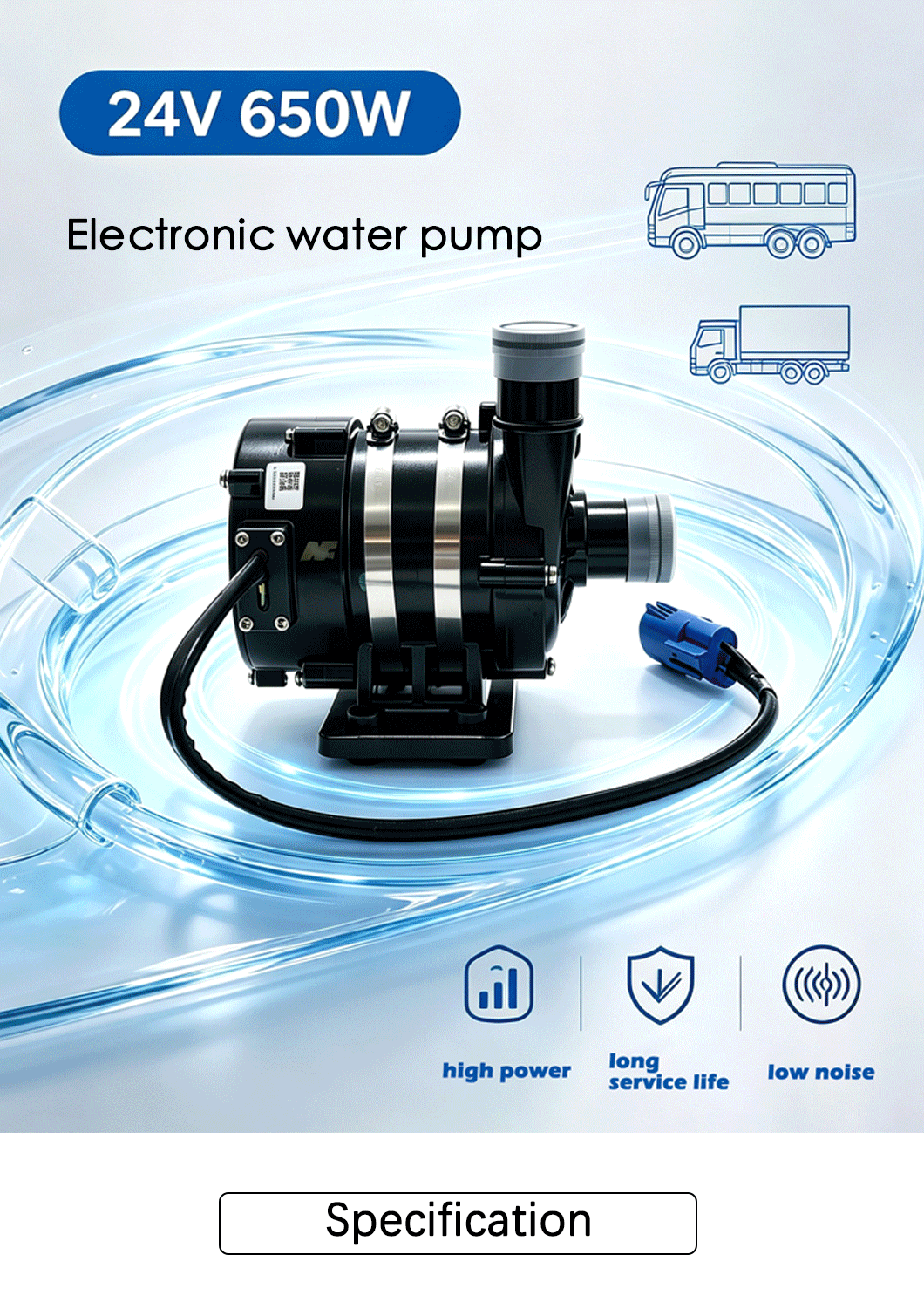

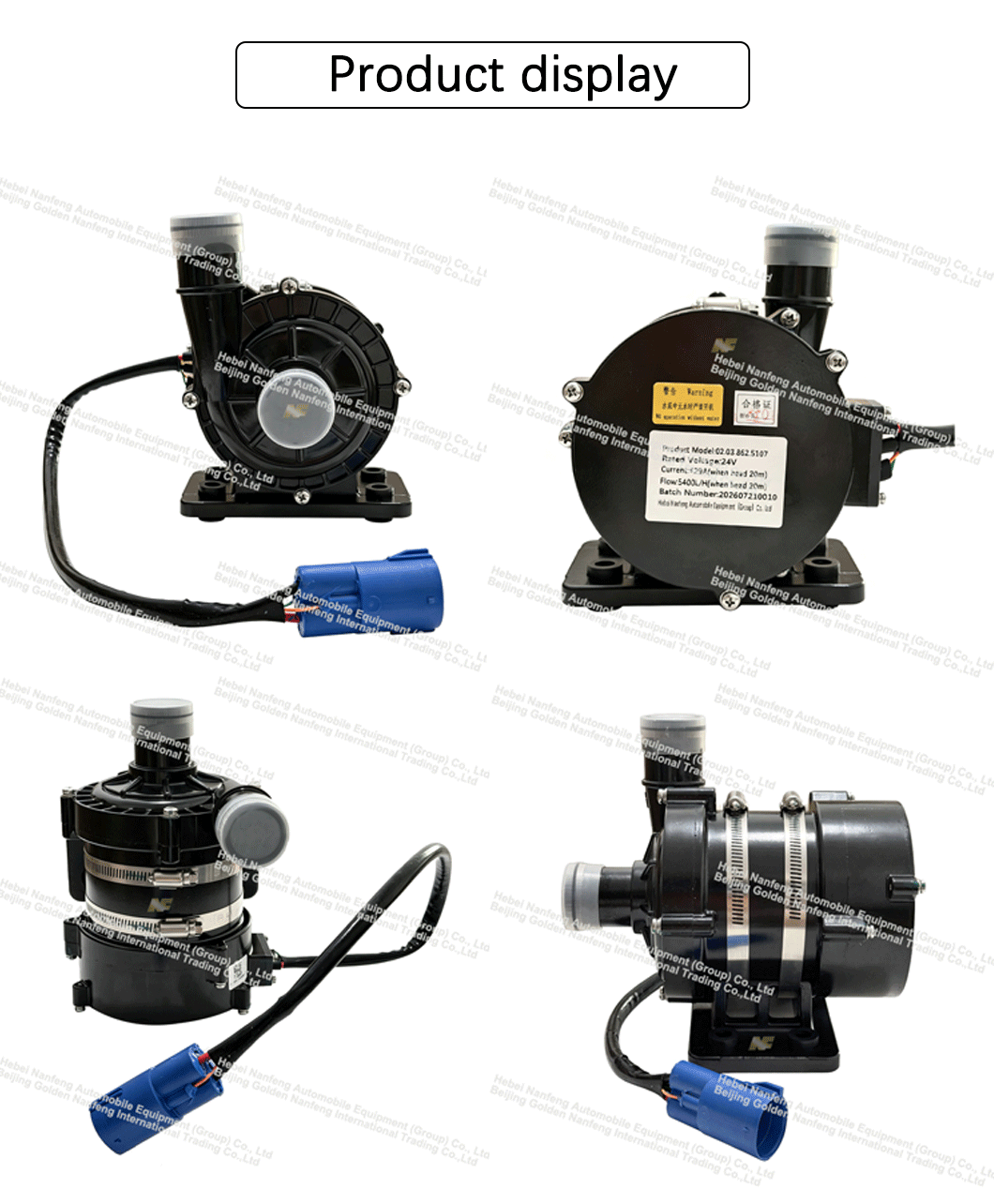

auto electric water pump
NF8625107
Electronic water pumps are core components of the thermal management system for new energy vehicles. They primarily provide high-flow and precisely controllable coolant circulation for the motor, battery, electronic control system (the three core components), and fuel cell.
This electronic water pump is a variable-speed pump that uses a brushless DC motor to drive the impeller to rotate. It is controlled by a controller to drive the brushless motor to rotate.
This electronic water pump is a variable-speed pump that uses a brushless DC motor to drive the impeller to rotate. It is controlled by a controller to drive the brushless motor to rotate.
Quantity:
| Rated voltage(V) | DC24V |
| Working voltage range | DC18V~32V |
| Rated current | ≤29A |
| Rated power | 650W |
| Cold style | Water-cooled |
| Waterproofing Grade | IP68 |

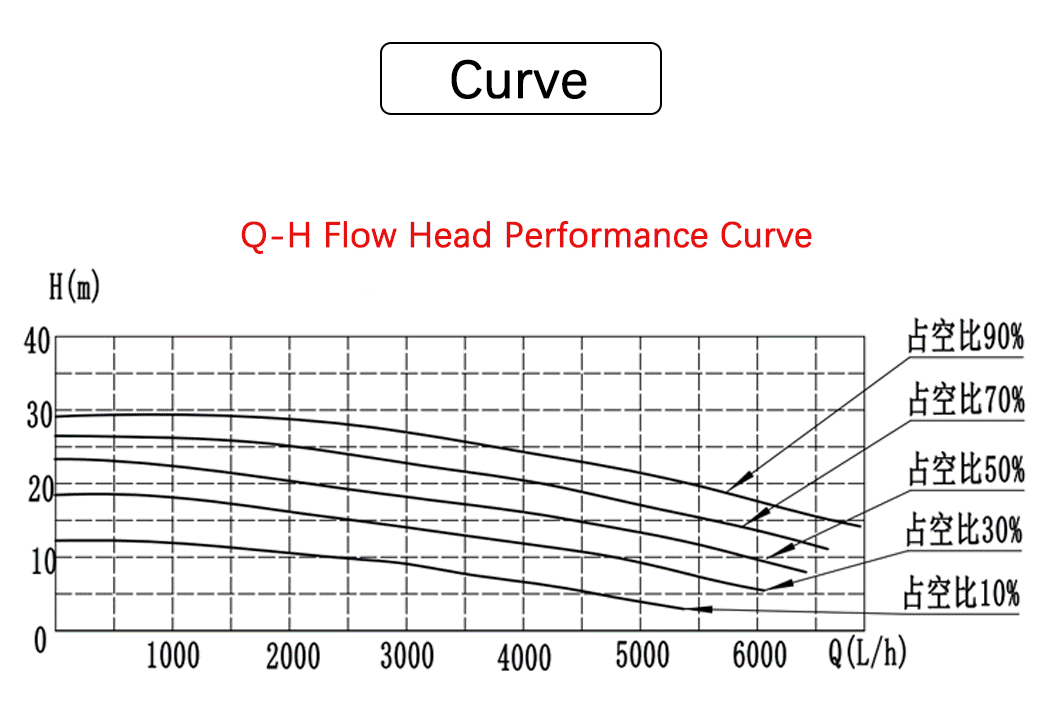

| ated flow | ≥5400L/h@20m |
| Maximum Head | ≥25m |
| Noise | ≤65 dB at 1 m |
Electronic water pumps are core components of the thermal management system for new energy vehicles. They primarily provide high-flow and precisely controllable coolant circulation for the motor, battery, electronic control system (the three core components), and fuel cell.
The fuel cell coolant circulation system employs a closed-loop forced circulation system, using a low thermal conductivity coolant driven by an electric water pump to maintain the optimal temperature of the fuel cell stack. The system integrates a deionizer for thermal insulation and utilizes intelligent flow control to achieve cold start-up and high-load heat dissipation.
The fuel cell coolant circulation system employs a closed-loop forced circulation system, using a low thermal conductivity coolant driven by an electric water pump to maintain the optimal temperature of the fuel cell stack. The system integrates a deionizer for thermal insulation and utilizes intelligent flow control to achieve cold start-up and high-load heat dissipation.
