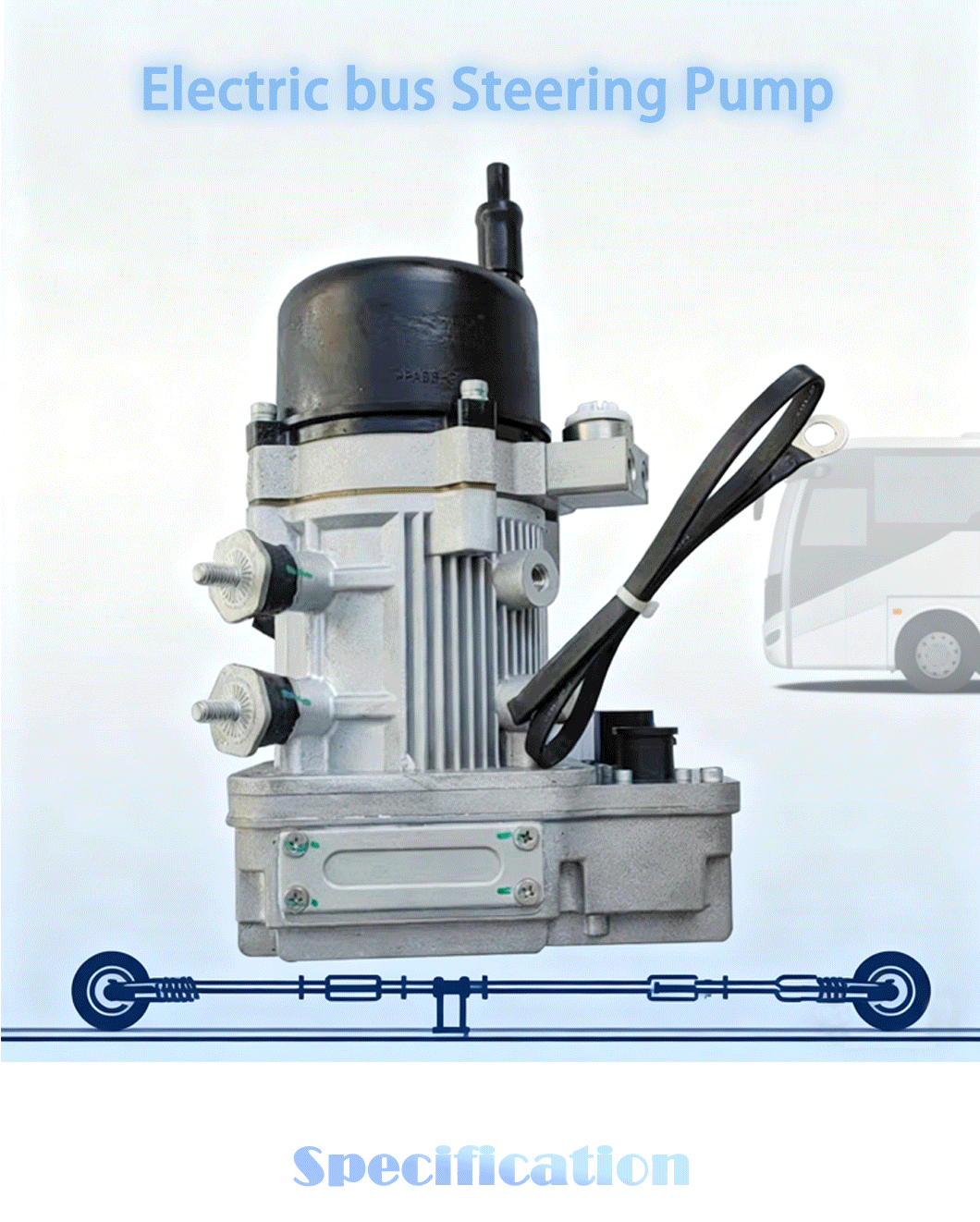

Electro Hydraulic Power Steering
NFEHPS30AZLHK01-010
Electric vehicle steering systems represent a fundamental technological departure from traditional gasoline-powered vehicles.
Primarily categorized into three distinct types, these systems include Electric Power Steering (EPS), Electro-Hydraulic Power Steering (EHPS), and Steer-by-Wire (SBW), each offering unique advantages tailored to the performance and safety requirements of modern electric mobility.
Primarily categorized into three distinct types, these systems include Electric Power Steering (EPS), Electro-Hydraulic Power Steering (EHPS), and Steer-by-Wire (SBW), each offering unique advantages tailored to the performance and safety requirements of modern electric mobility.
Quantity:

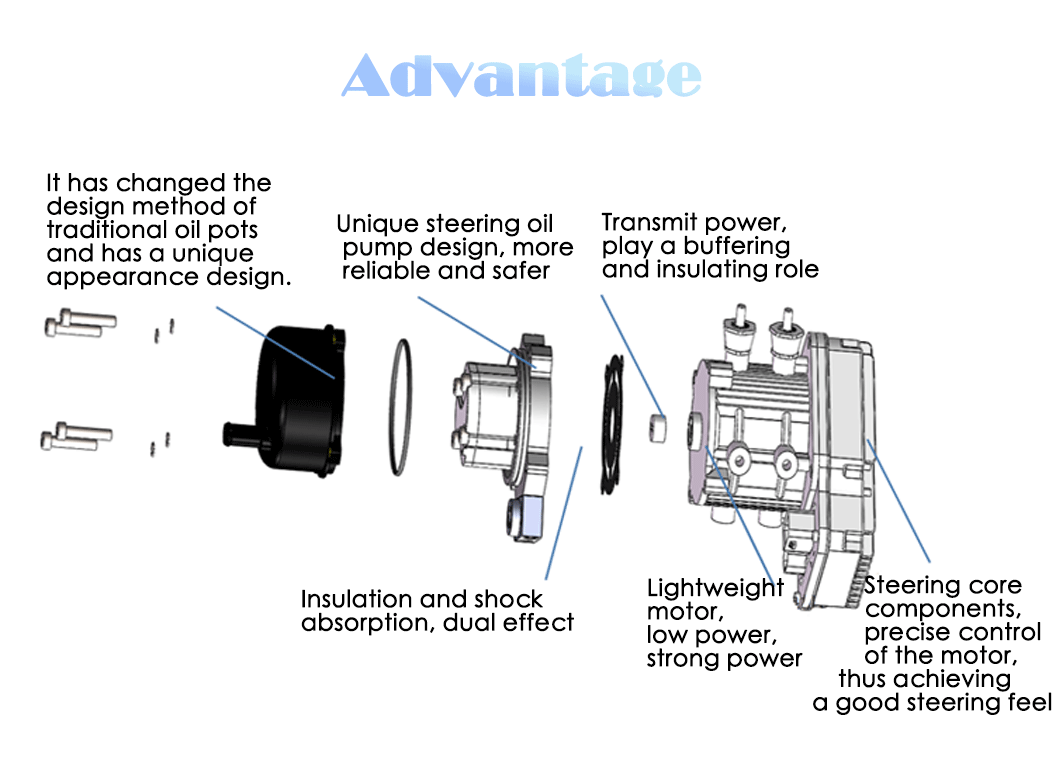

The 12V intelligent integrated electro hydraulic power steering system features an innovative integrated structural design, combining the traditional external oil reservoir and pump body. This optimizes space utilization while improving system sealing and reliability. Equipped with a high-performance steering pump and dual-function composite components, the system efficiently transmits power while also providing damping, vibration control, and electrical insulation, significantly enhancing operational smoothness and safety.
The Electrical power steering pump system utilizes a lightweight, high-power-density motor, achieving powerful output with lower energy consumption. Combined with a precisely controlled steering core motor, the Power steering pump responds to steering commands in real time, providing the driver with a smooth and refined steering feel, achieving a balance between precise handling and comfort.
The Electrical power steering pump system utilizes a lightweight, high-power-density motor, achieving powerful output with lower energy consumption. Combined with a precisely controlled steering core motor, the Power steering pump responds to steering commands in real time, providing the driver with a smooth and refined steering feel, achieving a balance between precise handling and comfort.
Rated power (W) | 750 |
Peak power (W) | 1500 |
Rated voltage ( VDC) | 12 |
Controller voltage range(VDC) | 9-16 |
Rated speed (r/min) | 3000 |
Duty | S1min |
No-load busbar current(A) | 6 |
Instantaneous peak busbar current(A) | 100 |
Protection class | IP67 |
Cooling method | Free cooling (ventilation) |
Working temperature | -40ºC~+85ºC |

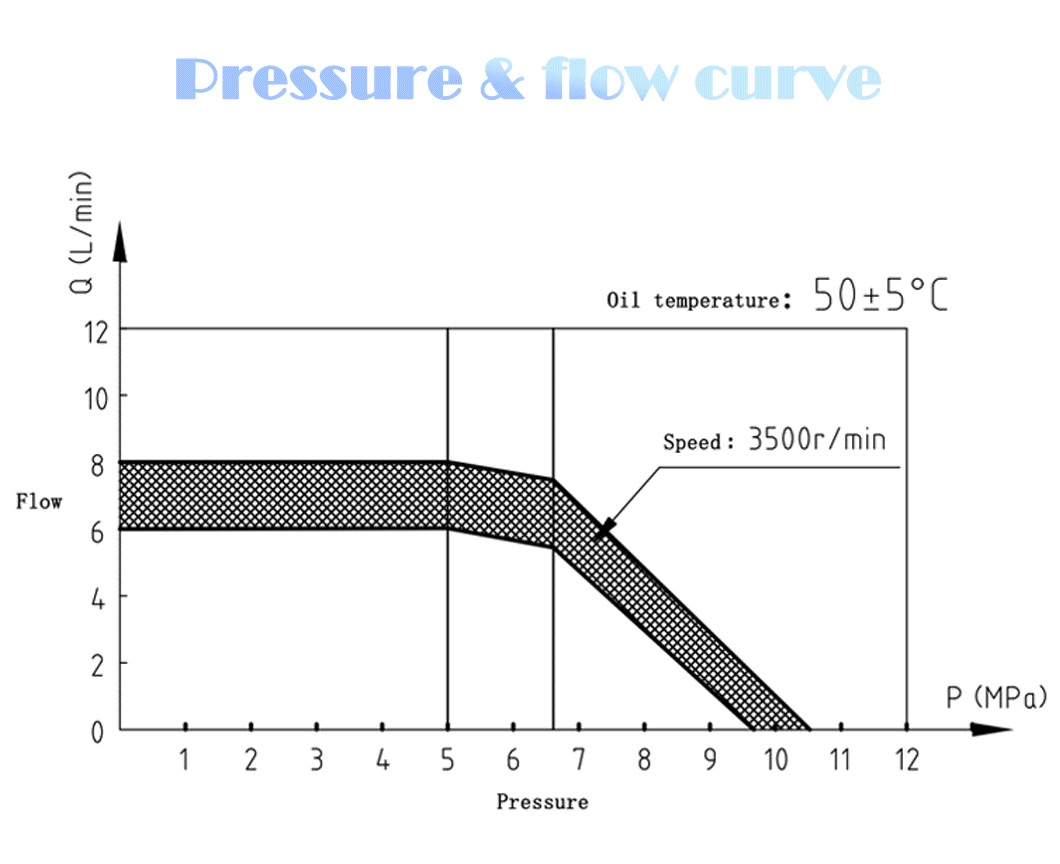

Control method | Ignition start strategy control, constant speed 3500rpm |
