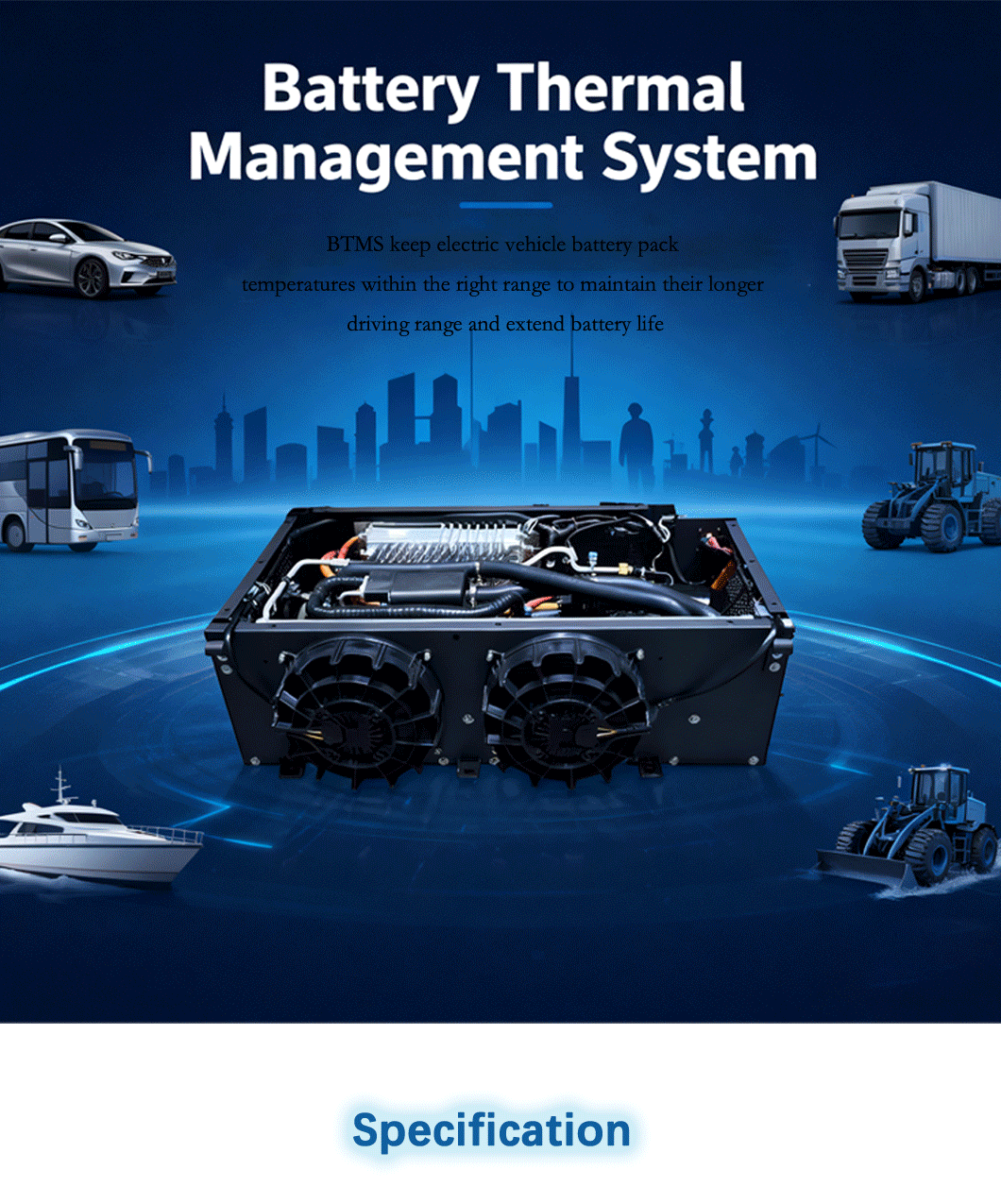

Battery Pack Thermal Management System
NF BTM15
Battery thermal management system keep electric vehicle battery pack temperatures within the right range to maintain their longer driving range and extend battery life. We also call it BTMS Battery or Battery Chiller or Battery Pack Cooling System.
Quantity:
Our BMTS(Battery Thermal Management System) can be customized according to customer requirements.

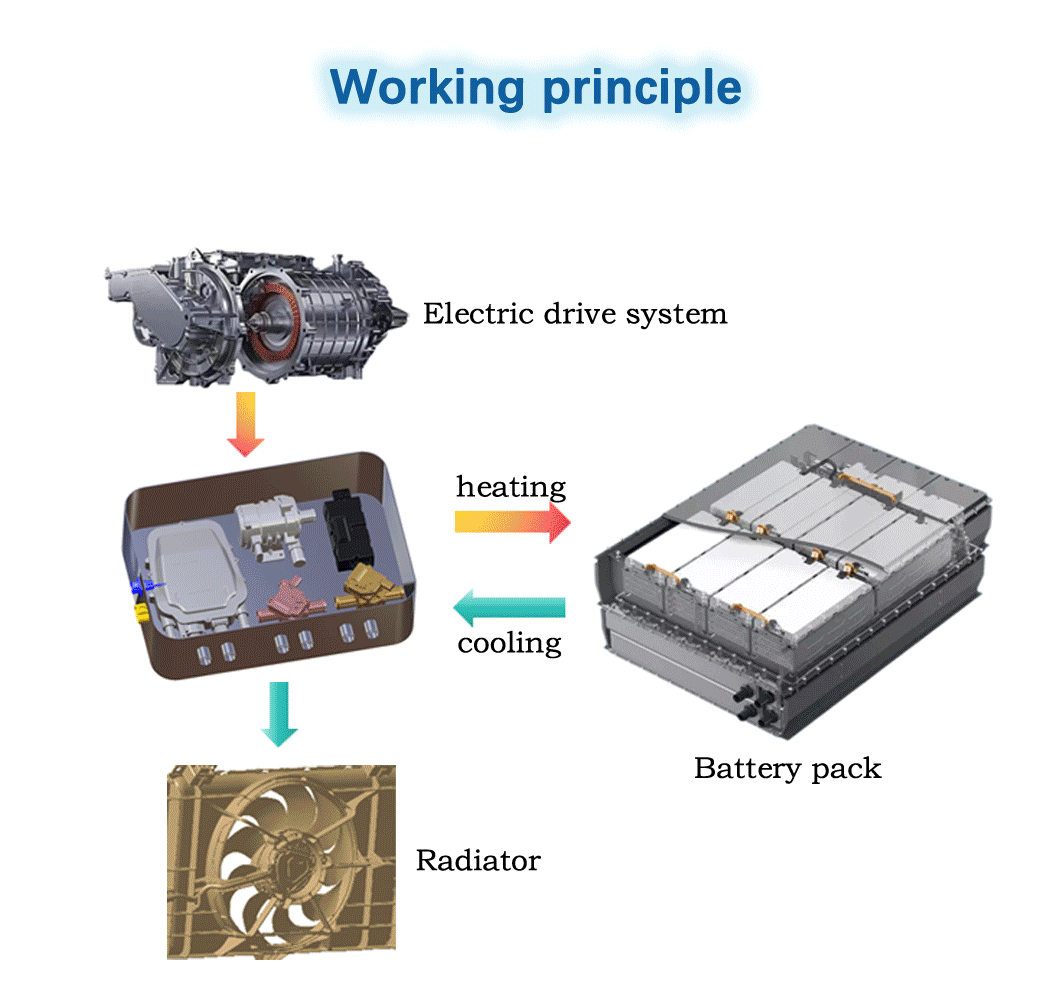

NF specializes in developing thermal management systems for electric bus batteries, electric truck batteries, electric boat batteries and electric heavy equipment batteries. They keep the temperature of the power battery pack in the optimal range by means of coolant cooling and PTC heating. This allows electric vehicles to achieve longer range and service life.
| Product Name | Battery Thermal Management System |
| Product Model Code | NFBTM10 |
| Refrigeration Capacity Test Condition | Ambient temperature 38ºC, outlet water temperature constant at 15ºC |
| Operating Ambient Temperature | -30 to +60ºC Refrigeration condition: -15ºC to +55ºC |
| Maximum Cooling Capacity | 10KW(8~24KW) (Optional) |
| Maximum Heating Capacity | 0~35Kw |
| Compressor Displacement | 33CC/46CC |
| Compressor Speed | 800~10000rpm/800~12000rpm |
| Coolant Type | 50%/50% Ethylene Glycol/Water Solution |
| Refrigerant Type | R134a |
| Communication Interface | CAN 2.0 Communication Rate: 500k bps |
| Control Method | Operating Mode + Target Water Temperature |
| COP | >2.2 |
| Coolant Flow Rate | >35L/min @ External Resistance 110kPa |
| Noise Level | <80dB (A) @ Maximum |
| Protection Rating | IP67 |
| Weight | <48kg/76KG |
| Low-voltage Power Supply Operating Range | 18~32V |
| High-voltage Power Supply Operating Range | ≤750V |
| Dimensions | L833W550H290mm/L900*W608*H341mm(excluding standard parts) |
| Inlet/Outlet Pipe Installation Diameter | Diameter 25mm |
Introduction:
The vehicle-grade battery cooling unit covers a cooling capacity of 8-15KW and a heating capacity of 10-24KW, providing battery cooling/heating for commercial vehicles (new energy heavy-duty trucks, new energy buses, new energy construction machinery), energy storage stations, battery swap stations, and other large-capacity battery applications
The vehicle-grade battery cooling unit covers a cooling capacity of 8-15KW and a heating capacity of 10-24KW, providing battery cooling/heating for commercial vehicles (new energy heavy-duty trucks, new energy buses, new energy construction machinery), energy storage stations, battery swap stations, and other large-capacity battery applications
Features:
1.Full-range temperature control
Combined low-temperature heating & high-temperature cooling (-30°C~50°C ambient) with ±1°C precision, maintaining optimal battery temperature for extended cycle life and improved energy efficiency.
2.Premium Product Emphasis
Advanced PID & energy-demand algorithms enable precise outlet temperature control (±0.5°C) with optimized energy efficiency. Features remote intelligent monitoring/diagnostics and OTA upgrade capability.
1.Full-range temperature control
Combined low-temperature heating & high-temperature cooling (-30°C~50°C ambient) with ±1°C precision, maintaining optimal battery temperature for extended cycle life and improved energy efficiency.
2.Premium Product Emphasis
Advanced PID & energy-demand algorithms enable precise outlet temperature control (±0.5°C) with optimized energy efficiency. Features remote intelligent monitoring/diagnostics and OTA upgrade capability.
