8KW Thick Film Heater For Ev Truck
NF HVCH-Q8
7-15 kW thick film electric heater, which has been supplied in batches. This product has the advantages of ultra-high thermal efficiency, strong pressure resistance, ultra-long life, ultra-safety, and simple structure.
Quantity:
| OE NO. | HVCH-Q8 |
| Rated power | 8KW(OEM 7KW~15KW) |
| Rated Voltage | DC600V(OEM 350V~890V) |
| Voltage Range | DC450V~DC750V |
| Control Low Voltage | 9V~32V |
| Control Signal | CAN |

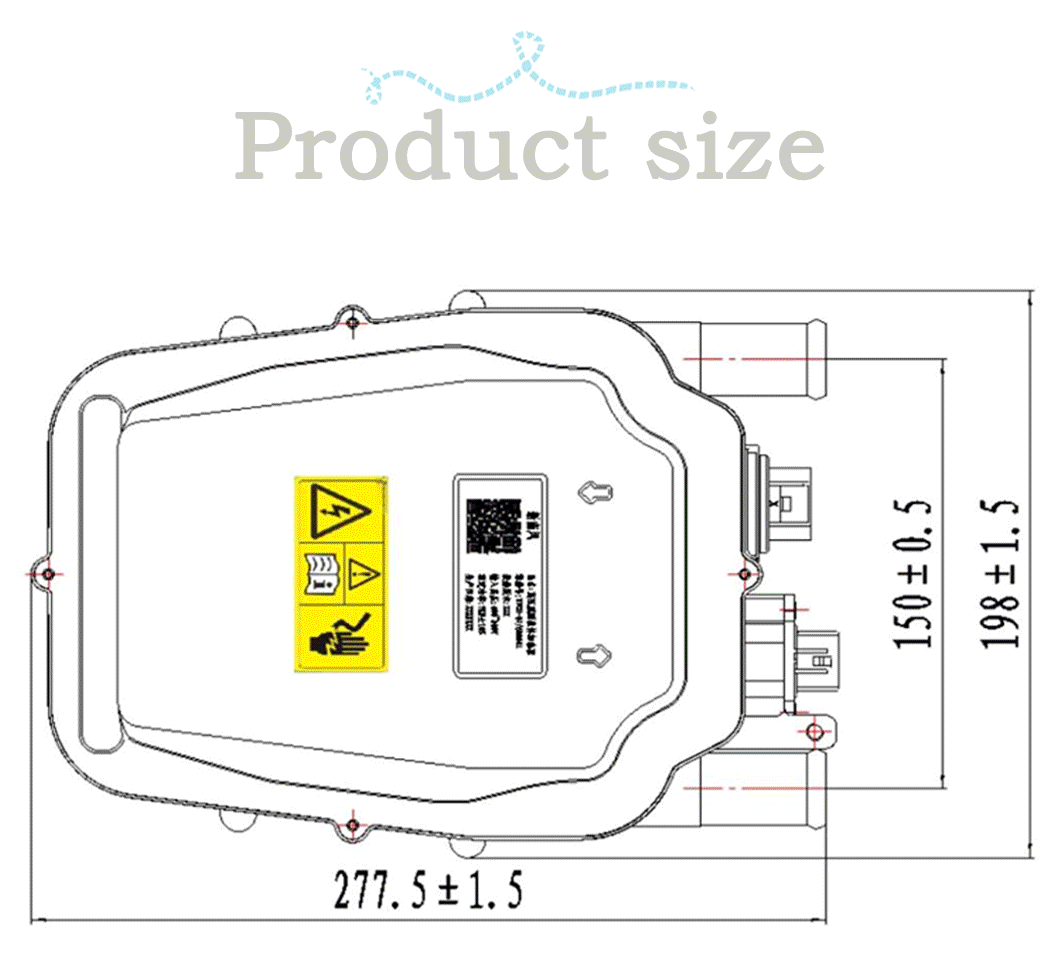

| Over dimension (L* W* H) | 277.5mmx198mmx54mm |
| Inlet and Outlet Water Joint Dimension | Ø25mm |
High voltage film heaters are used to replace the engine block as the primary heat source. They work by supplying power to a thick-film heating element, causing it to heat up, and then heating the medium in the circulating piping of the heating system through heat exchange.
Key performance characteristics are as follows:
Compact structure, high power density, and flexible adaptability to vehicle installation space.
Redundant sealing design improves system reliability.
