auto electric ac compressor
NF-EZC4502
If you're looking for the electric automotive air conditioning compressor, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.
Quantity:

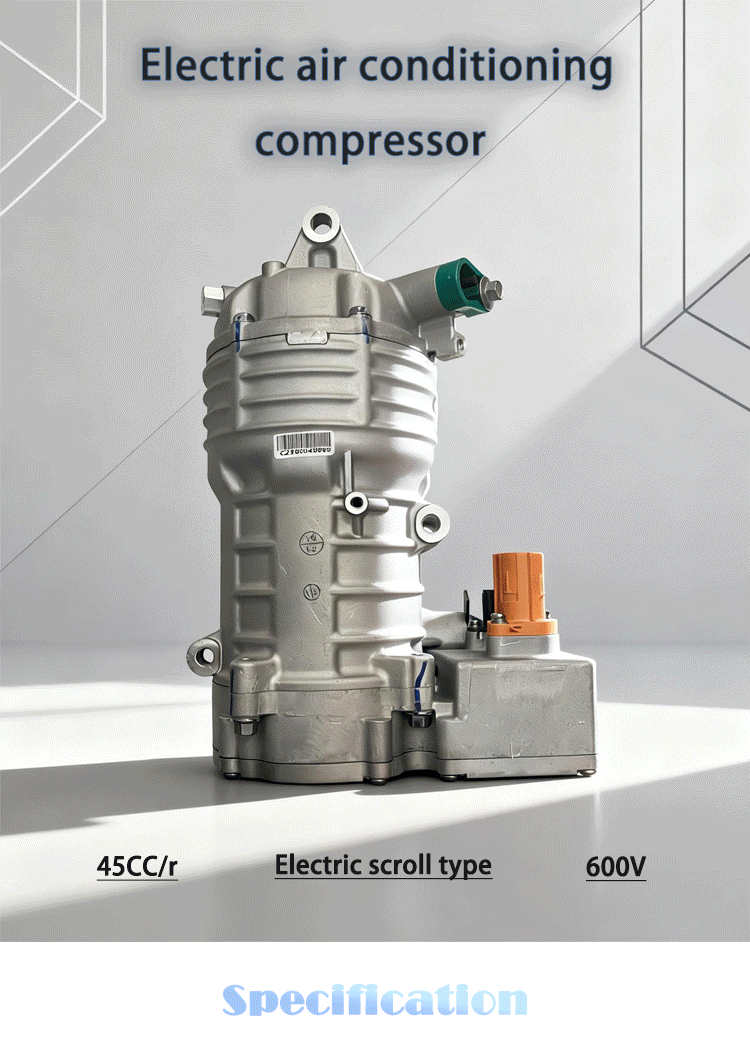

Our Electric Air Conditioning Compressor (EACC) incorporates a permanent magnet synchronous motor, directly powered by the vehicle's high-voltage battery. As the core power component for both in-vehicle cooling and auxiliary heating (in a heat pump system), it ensures comfortable interior temperatures while maximizing energy efficiency and extending the vehicle's driving range.
Model | NFEZC45 |
Type | Electric scroll |
Refrigerant | R290 |
Work temperature | -20℃~110℃ |
Storage temperature | -40℃~110℃ |
Voltage resistance | leakage current<10mA@2000V(AC)/50HZ |
Electrical isolation | ≥20MQ@1000V(DC) |
Displacement | 45CC/r |
Speed range | 800-8500rpm(Customizable) |
Cooling method | sucion gas cooling |
Refrigerant leakage rate | ≤5g/year |
Lubricating oil | PVE |
Shell | Cast Aluminum Alloy Shot Peening |
Total weight (including oil) | ≤7.7kg(including oil) |
Install position | near motor or gear case |
Suction inner size | Φ28.4mm(Customizable) |
Discharge inner size | Φ15.35mm(Customizable) |
IP rating | IP67 |
Material restrictions | ROHS compliance, lead free |
Mechanical pressure release | 4+0.4Mpa(A) |
Suction operating pressure | 0.1~0.5Mpa(A) |
Discharge operating pressure | 0.7~2.8Mpa(A) |
Maximum operating pressure | 2.8Mpa(A) |
Corrosion resistance | 500HRs later:functional and less than 5%surface area visual damage |
Cleanliness | Impurity weight 10mg,size 0.5mm max ,seal inlets and outlets use dust caps for shipping |
