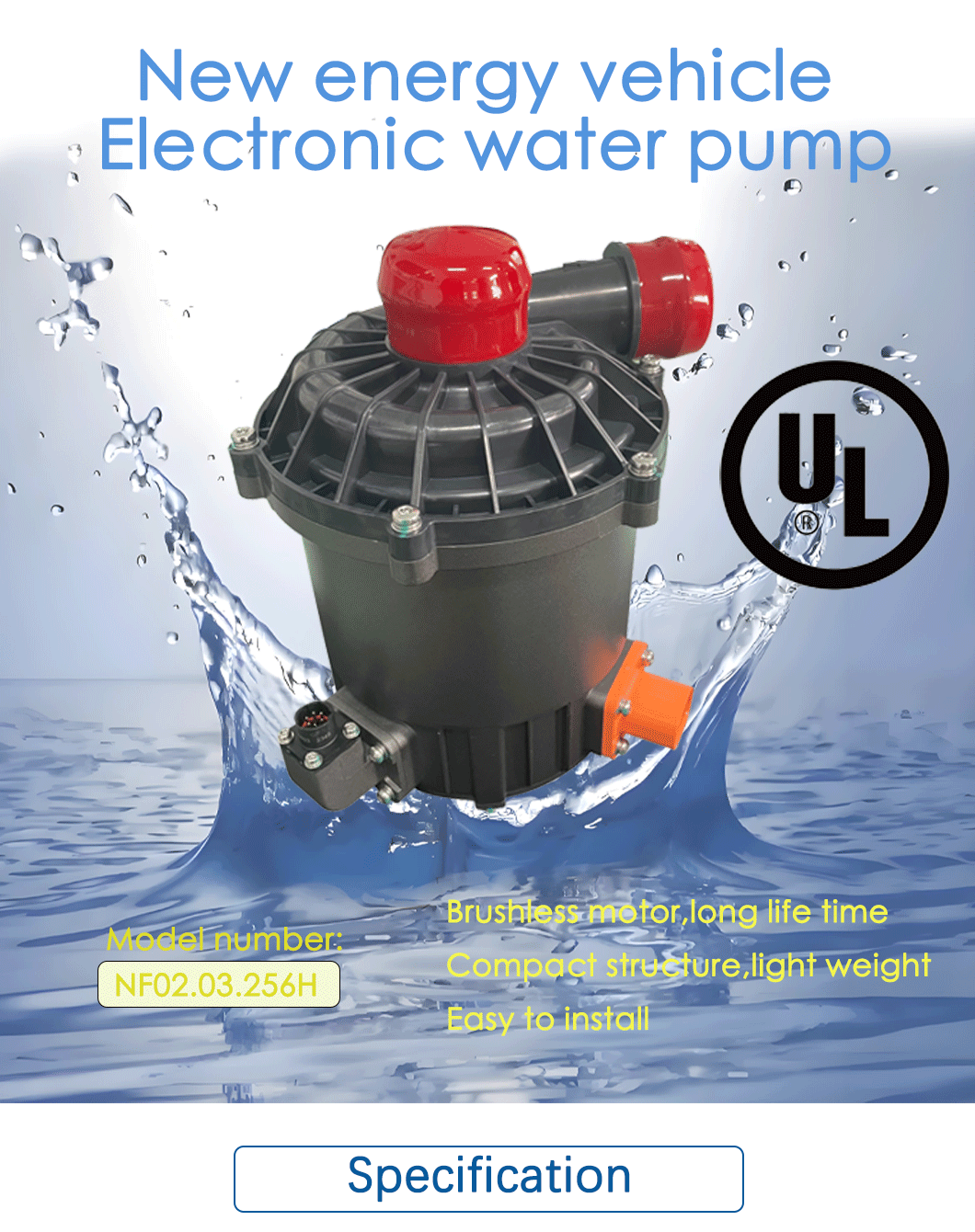

Automotive Electronic Water Pump

2500w Hydrogen Energy Electric Bus Water Pump

NF02.03.256
NF new energy electric water pump is mainly used for the cooling, and dissipation of heat of electric motors, controllers, batteries and other electrical appliances in new energy (hybrid and pure electric vehicles).
Quantity:
Contact Now
add to cart

Overview:High-voltage electronic water pumps are mainly available in power ranges from 1KW to 2.5KW, with a rated voltage of DC600V, a high-end voltage range of DC400-750V, and a low-voltage control terminal power supply range of DC9-32V.

Main Applications: Primarily used in hydrogen fuel cells and energy storage cooling units.

Product Features:

Shielded structure, low noise, high stability, and long lifespan;

Dielectric insulation;

High-voltage water pump control;

Permanent magnet synchronous motor, high efficiency.

Model Number
NF02.03.256H
Ambient Temperature-40ºC~+85ºC
Medium Temp-40ºC~+95ºC
Rated Voltage24V
Voltage RangeDC9V~DC32V
Waterproofing GradeIP67
Service life≥30000h
Noise≤70dB
Rated Voltage600v

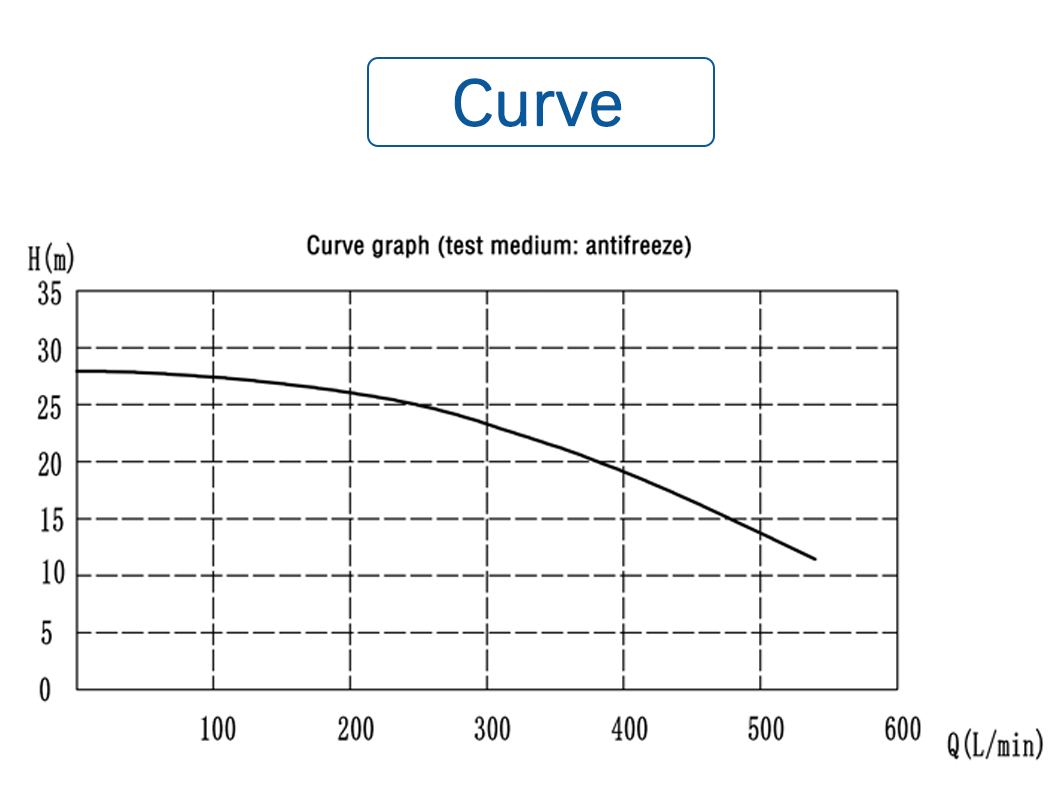

FlowingQ=385L/min( when the head is 18m)




Installation Precautions

1. Install the pump away from high-temperature areas.

2. Antifreeze should meet national standards.

3. Minimize the use of bends in the piping layout.

4. Do not operate the pump for extended periods without a circulating medium.

5. Metal filings are not allowed in the piping.

6. Avoid fixing the water pump directly to the engine.

7. The distance between the water inlet and the water pump should not exceed 500mm.

8. Ensure the water pump bracket is securely fixed.
