240W Automotive Electric Water Pump
NF622.2019

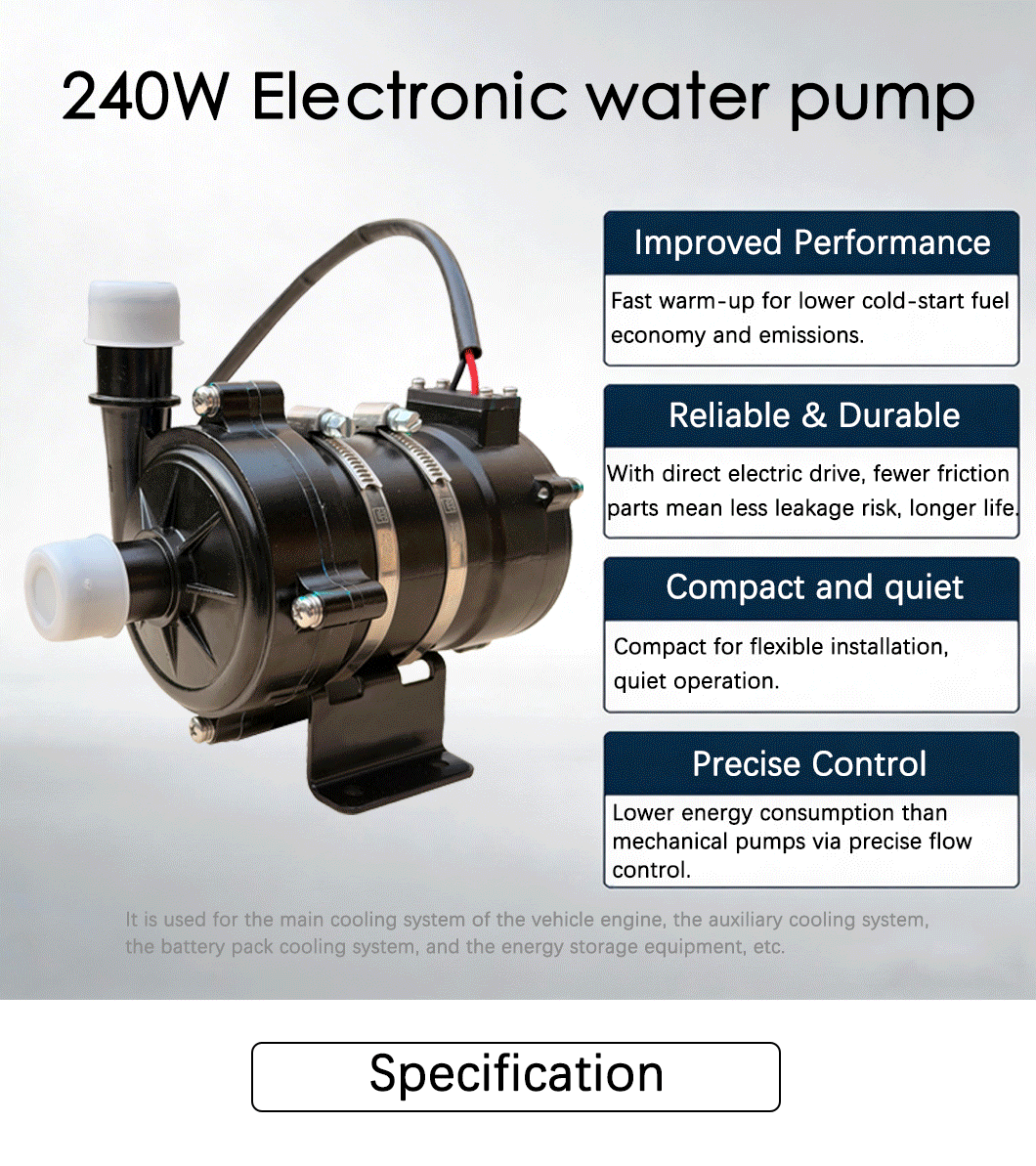

This 240W electronic water pump is a speed-adjustable pump driven by a brushless DC motor, with the motor's rotation controlled by a controller.
It can be used in automotive engine main cooling systems, auxiliary cooling systems, battery pack cooling systems, and energy storage devices. It provides energy for coolant flow to various heat dissipation points, maximizing the effectiveness of various thermal control systems and ensuring their stable operation.
It can be used in automotive engine main cooling systems, auxiliary cooling systems, battery pack cooling systems, and energy storage devices. It provides energy for coolant flow to various heat dissipation points, maximizing the effectiveness of various thermal control systems and ensuring their stable operation.
Quantity:
| Rated voltage(V) | DC24V |
| Working voltage range | DC18V~32V |
| Rated current | ≤11.5A |
| Rated power | 240W |
| Waterproofing Grade | IP68 |

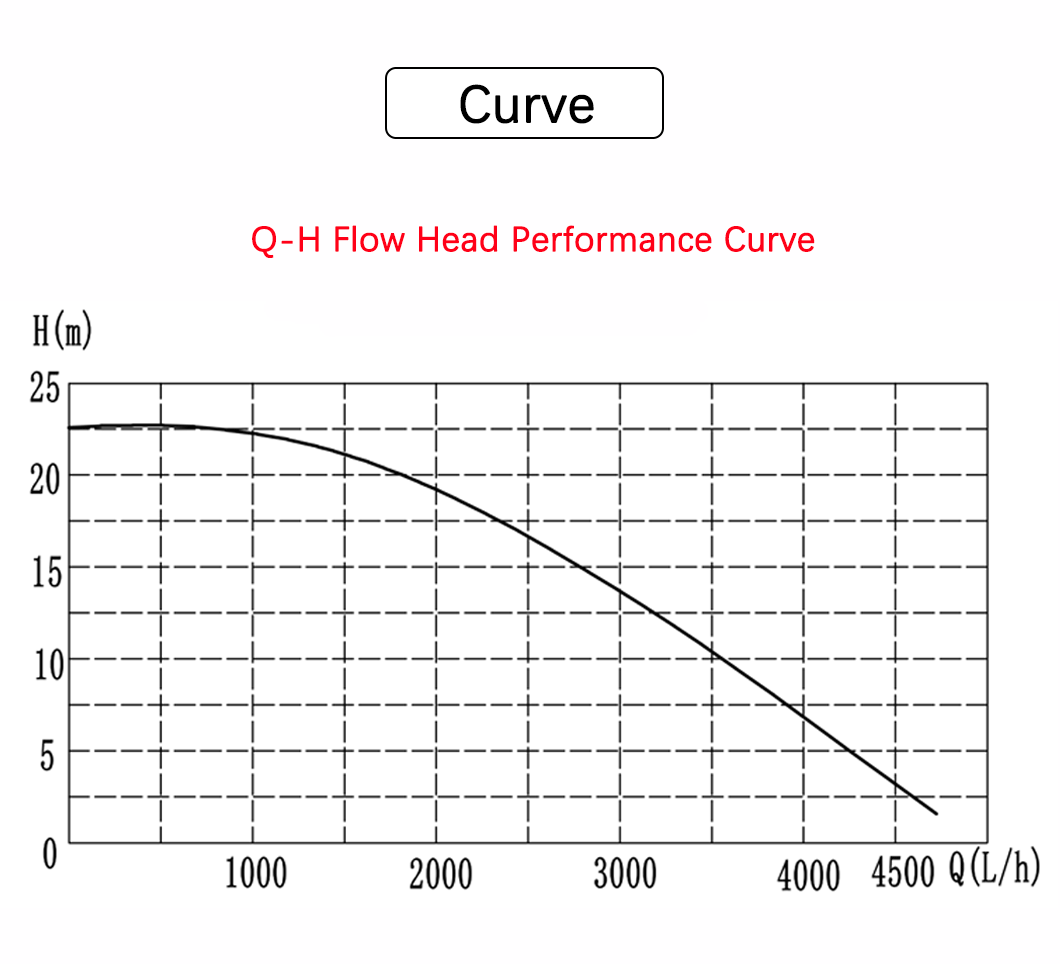

| ated flow | ≥3000L/h@13m |
| Maximum Head | ≥20m |
| Noise | ≤60 dB at 1 m |

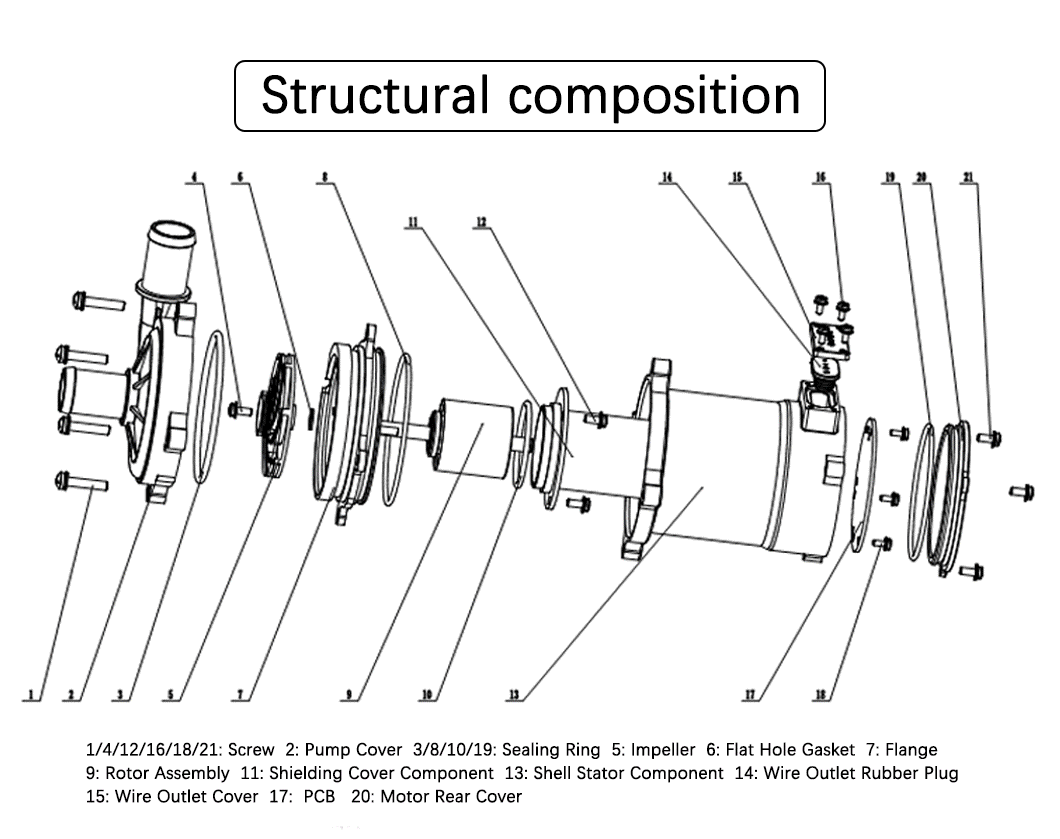

Structural composition
This series of 240W electronic water pumps is a brushless motor-driven canned motor pump. The main components are as follows:
- A DC brushless motor, including a rotating assembly (impeller assembly, shielding assembly, flange, rotor assembly) and a stator housing.
- A controller (PCB assembly) for communicating with the main control unit and controlling the DC brushless motor.
- A pump cover for connection to the vehicle, engine, and cooling system.
- A brushless motor rear cover including a connector for connecting to the vehicle.
