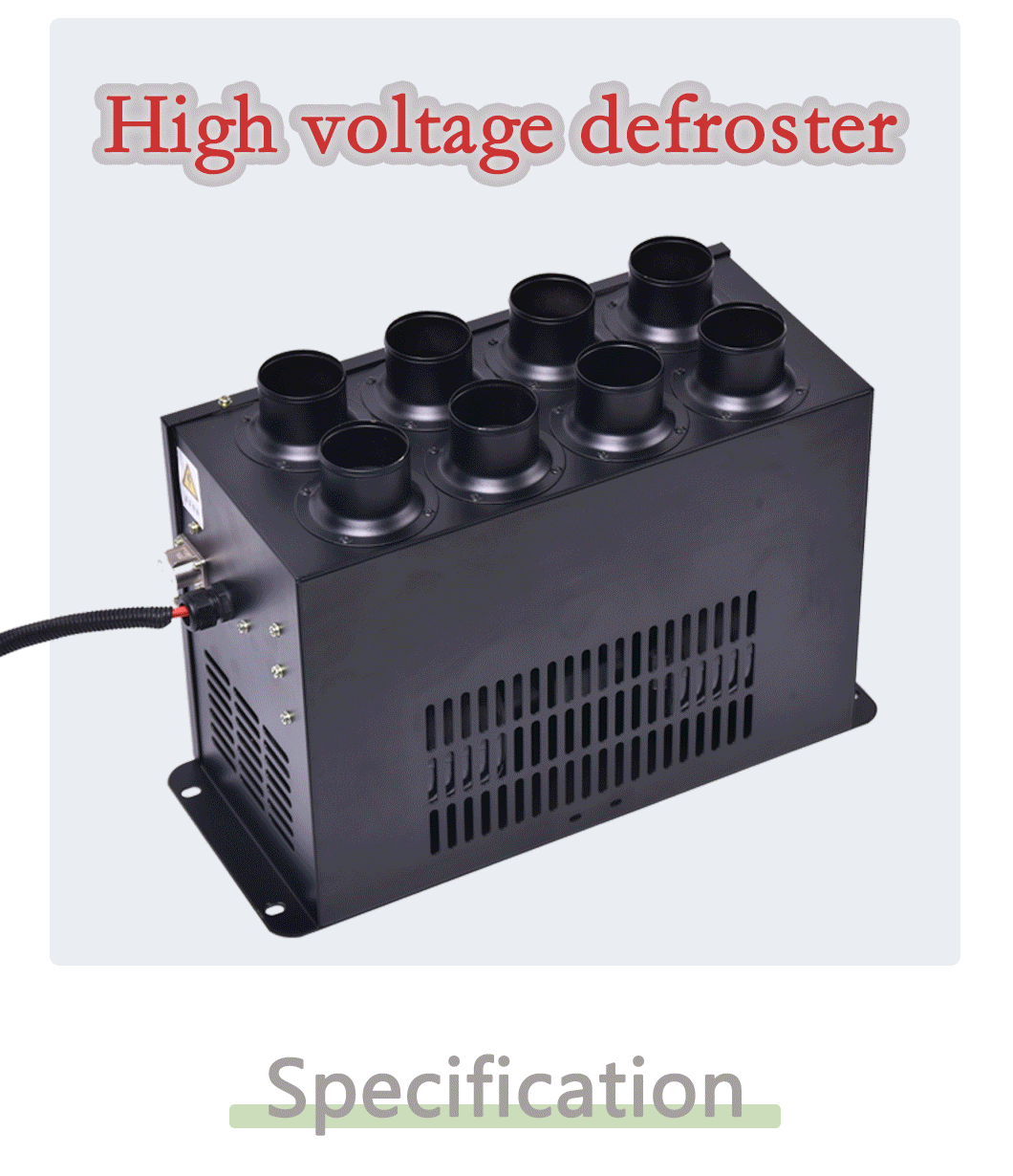

High voltage electric bus defroster
NF DCS-900B-WX033
The high-voltage electric defroster uses PTC as the heating element and provides defrosting functions for vehicles in the form of forced air exhaust.
Applicable vehicle models: New energy medium buses, coaches and buses
Applicable vehicle models: New energy medium buses, coaches and buses
Quantity:
Technical requirement：
1. Fan voltage: DC24V, power: 180W; (purchased fan);
1. Fan voltage: DC24V, power: 180W; (purchased fan);
2. The voltage of the heater is 600V (ensure normal operalion between 450v-750v), and the power of the heater is 4kw; Equipped with 90 ° normally closed temperature switch;
3. Plastic sprayed black and matte; The length of outgoing line outside the shell is 300mm-400mm;
3. Plastic sprayed black and matte; The length of outgoing line outside the shell is 300mm-400mm;

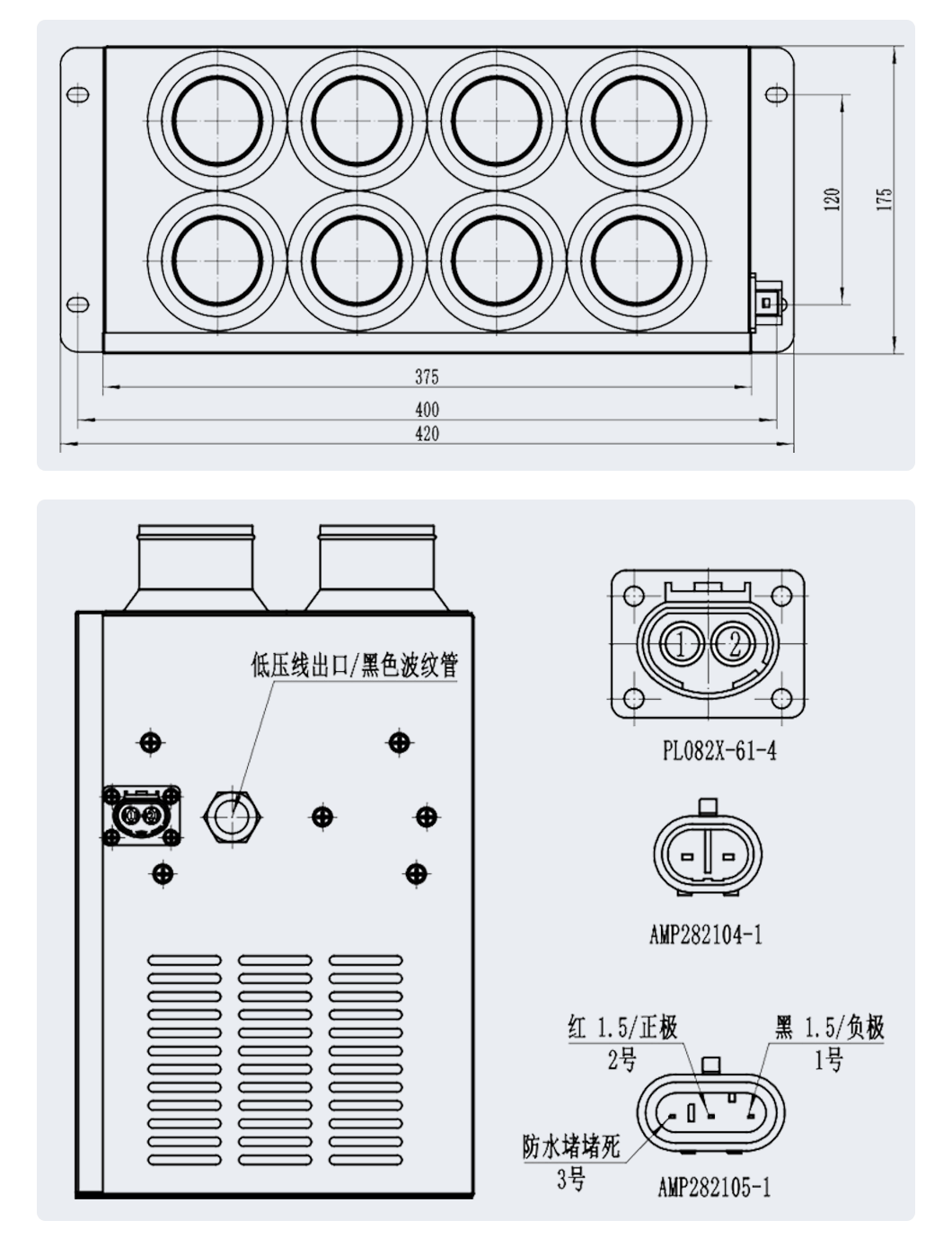

4. The model of high voltage socket is pl082x-61-4, with positive pole at position 1 and negative pole at position 2;(model of plug-in end: pl182x-61-4); The high-pressure port is blocked with a special protective cover;
5. All air outlets of the defroster shall be blocked with adhesive tape to prevent dust from entering;
6. Supporting dcs-k2-wx001; The connecting harness is provided with the machine (see the attached figure);
7. Built in high-voltage contactor;
8. Self tapping screws shall not be used for assembly and fixation.
7. Built in high-voltage contactor;
8. Self tapping screws shall not be used for assembly and fixation.
